ERATAC Picatinny Attachment – Adapter Plate for Red Dot, Picatinny or Accessories on ERATAC Mounts
Accessories on an optics mount require a defined interface – not just any free space.
The ERATAC Picatinny Attachment is an ERATAC attachment for the ERATAC universal interface. It is used to mount red dots, small accessory rails, or other devices to the universal interface of a compatible ERATAC mount.
The crucial point is the interface logic: centric, lateral, cranked, overall height, and footprint determine whether the accessory is truly usable. A universal interface does not mean universal for every optic. Footprint, overall height, lateral/centric, and screw pattern must match.
Important note for classification:
A universal interface does not mean universal for every optic. Footprint, overall height, lateral/centric, and screw pattern must match.
Before purchasing, check: ERATAC series, universal or T7 interface, footprint, screw pattern, overall height, turret/eyepiece clearance, right/left position, and whether additional weight on the optics mount is sensible.
What makes this product technically special:
✔ Interface adapter: creates a defined accessory position directly on the mount.
✔ Centric or lateral: Position influences line of sight, weight balance, and operation.
✔ Footprint/screw logic: crucial for Aimpoint ACRO, RMR, Docter/Noblex, Picatinny, or LRF.
✔ Short design: reduces unnecessary additional rail and keeps accessories closer to the optical system.
✔ Variants: Size: 85mm, 55mm, 35mm; Mounting position: BH 8mm, BH 10mm – the selection is crucial for purchase.
Why this product?
These attachments exist because auxiliary optics and devices can be more effectively placed closer to the main optic than somewhere on the handguard. However, this is only true if operation remains unobstructed and the mount is not combined with the wrong footprint or incorrect height.
-
Accessories close to the optic: short distances for line of sight, operation, and ballistic data.
-
Choose footprint carefully: prevents adapter stacking and crooked mounts.
-
Control overall height: important for turrets, eyepiece, night vision/thermal devices, and LRF.
-
Consciously manage weight: auxiliary devices change balance and shooting stance more than many expect.
Instructor Tip: First set up the main optic, then plan the auxiliary device
Don't mount the attachment first and then look for a position for the scope. The main optic must first be correctly seated: eye relief, height, reticle, and turret access.
Only then do you decide whether a red dot, LRF, or Picatinny attachment makes sense centrally, laterally, or cranked. Otherwise, you'll build the setup around an accessory that is actually secondary.
For lateral attachments, check in a firing stance whether shoulder, cheek rest, and head movement remain repeatable.
Our Assessment
The ERATAC Picatinny Attachment is strong if you want to specifically expand an existing ERATAC system. It is less useful if you actually need a standalone optics mount or a different interface. Especially with red dots and LRFs, the correct interface is more important than the manufacturer's name.
Suitable for:
- Red dot backup on scope mounts
- Laser rangefinders/LRF close to the optic
- Long-range and observation setups with accessories on the mount
- Setups where handguard positions should remain clear
Less suitable for:
- Mounts without a suitable ERATAC interface
- Incorrect footprint or unclear screw length
- Very heavy auxiliary devices without balance checking
- Users who do not consciously choose centric/lateral
Direct Classification:
✔ ERATAC Picatinny Attachment: useful if the appropriate ERATAC interface is available and the accessory should be on the optics mount.
✔ Standalone Picatinny/M-LOK mount: better if accessories need to be further forward, lower, or independent of the optic.
The attachment is only worthwhile if it improves operation and does not just add more parts to the rifle.
Application Scenarios
-
Long Range: Keep LRF/SWK/level closer to the optical system.
-
Range: Test offset or top red dot as an addition to the main optic.
-
Hunting: Only use auxiliary device if weight and operation are suitable in the firing stance.
-
Workbench: Match footprint, screw length, and height before mounting.
Practical Tip: Check Screw Length and Turret Clearance
For red dot footprints, screw length is often the underestimated error. Screws that are too short hold poorly, screws that are too long can damage the device or not clamp completely.
For laser rangefinders, additionally check if the Picatinny rail does not block the elevation or windage turret and if you can reach the controls with gloves on.
Features & Construction
-
Function: To attach red dots, small accessory rails, or other devices to the universal interface of a compatible ERATAC mount.
-
Interface: ERATAC universal or special mount interface – not automatically compatible with every mount.
-
Position: Size: 85mm, 55mm, 35mm; Mounting position: BH 8mm, BH 10mm – centric, lateral, cranked, or overall height are crucial.
-
Practical limit: Additional weight on top or on the side changes balance and shooting stance.
-
Footprint: compare with optic/red dot/LRF before purchase.
Technical Data
-
Brand: ERATAC / Recknagel.
-
Product Type: Attachment for ERATAC universal interface – accessory interface for compatible mounts.
-
Variants: Size: 85mm, 55mm, 35mm; Mounting position: BH 8mm, BH 10mm.
-
Size: 85mm, 55mm, 35mm – determines the appropriate version, not just the optic.
-
Mounting position: BH 8mm, BH 10mm – determines the appropriate version, not just the optic.
-

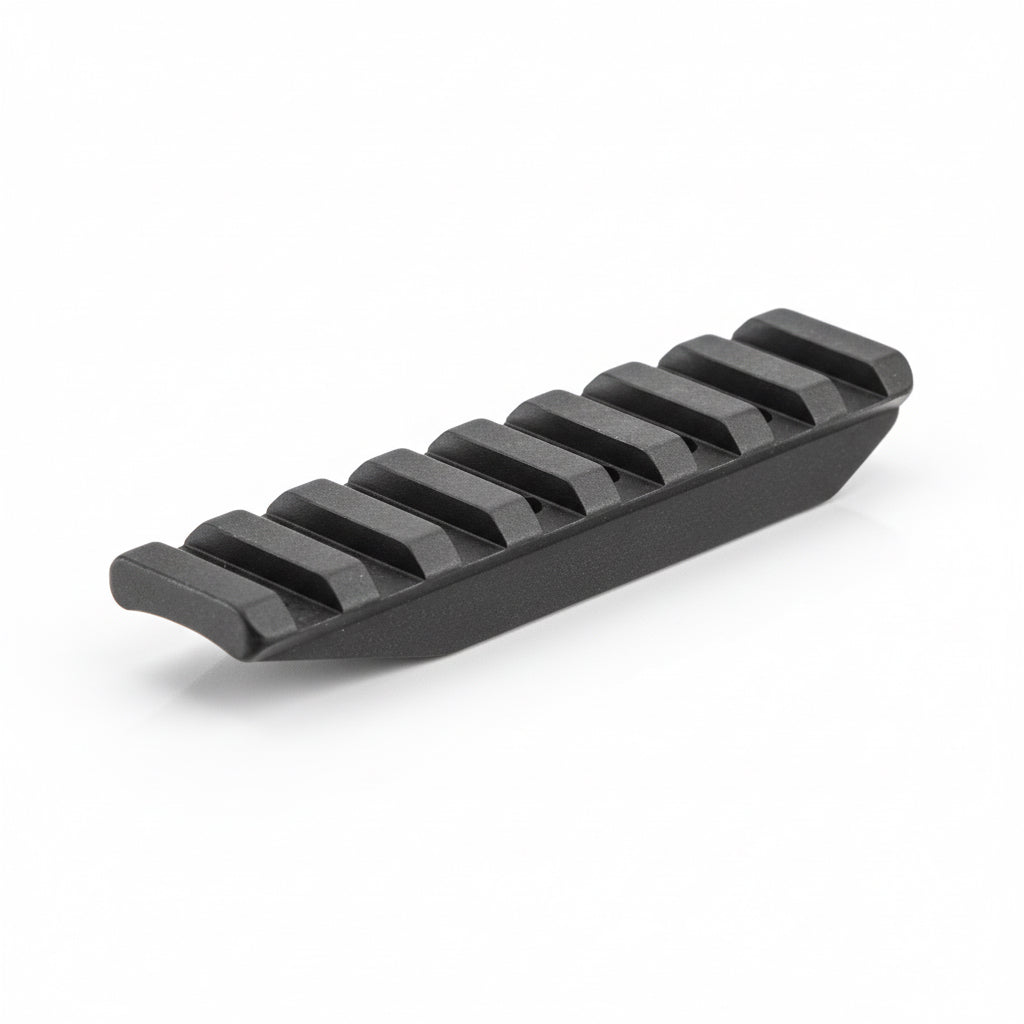

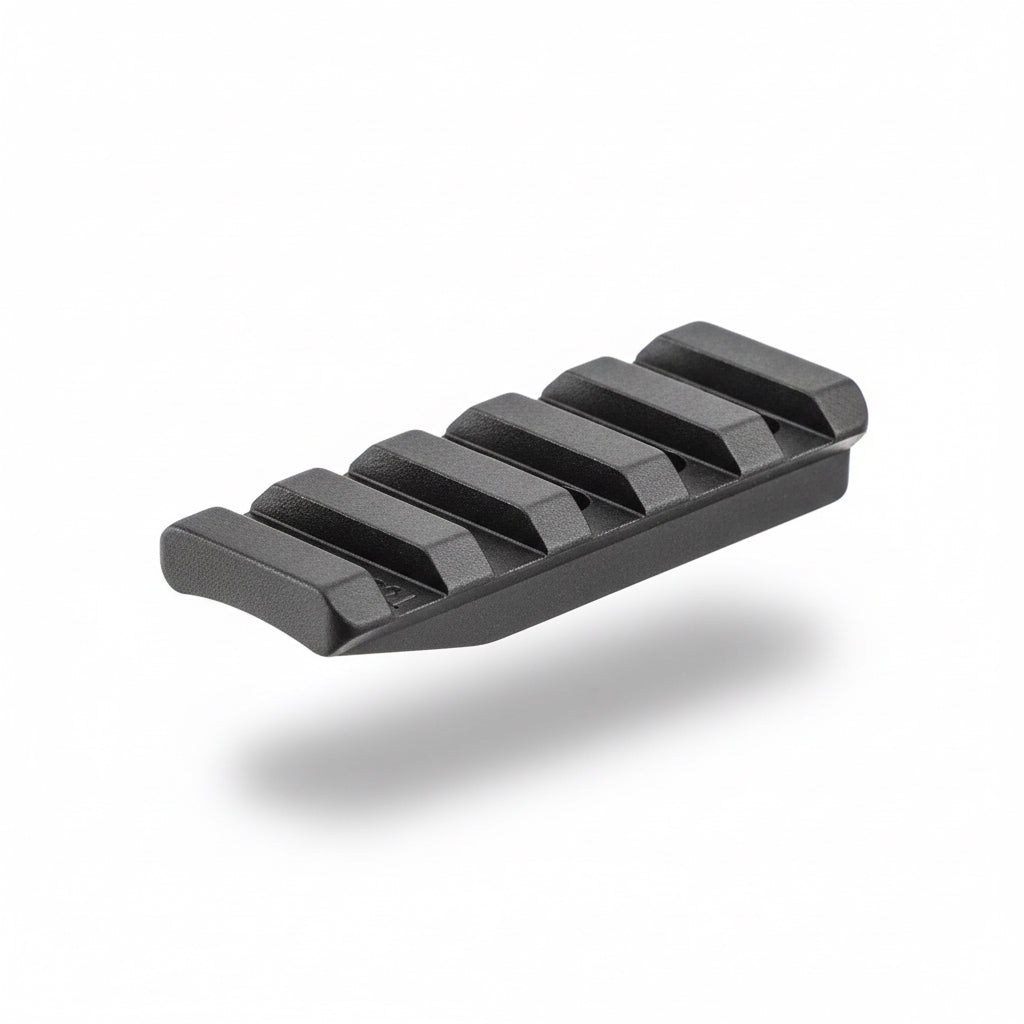

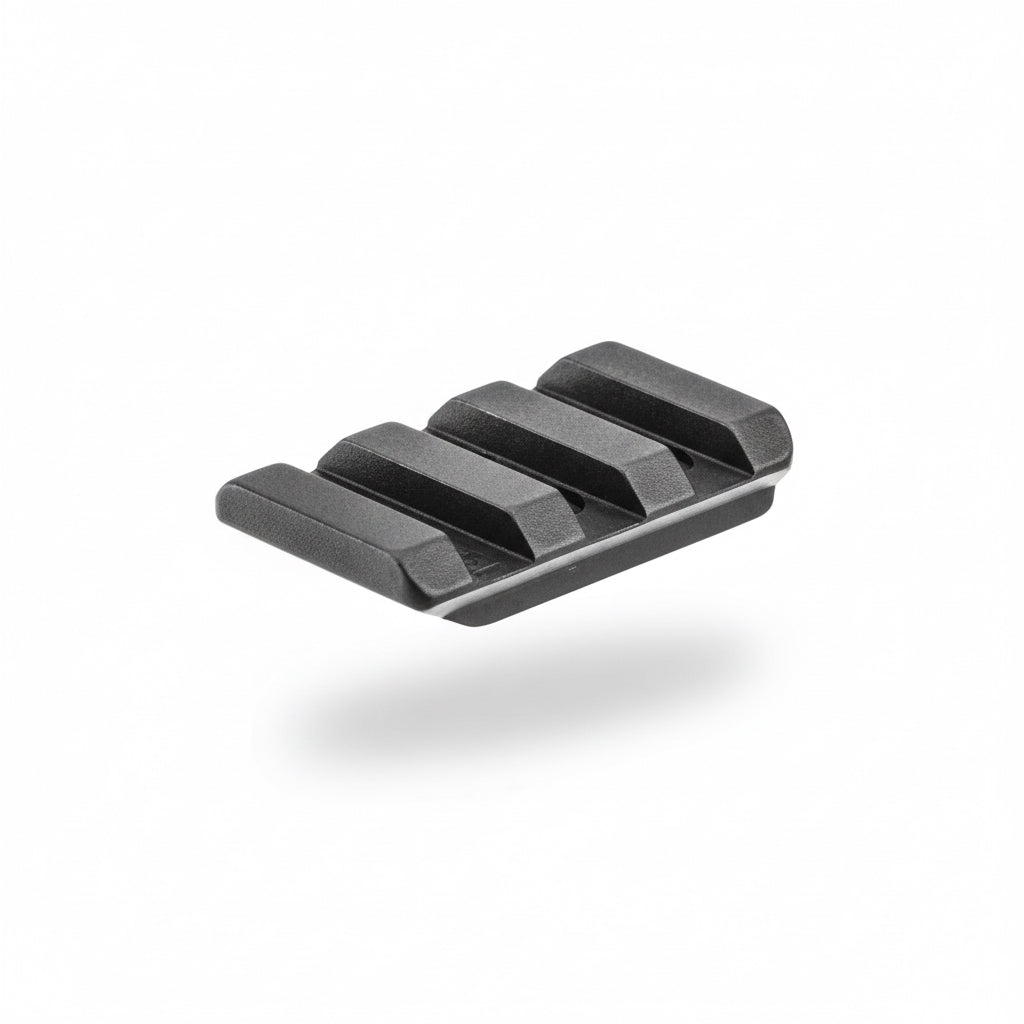

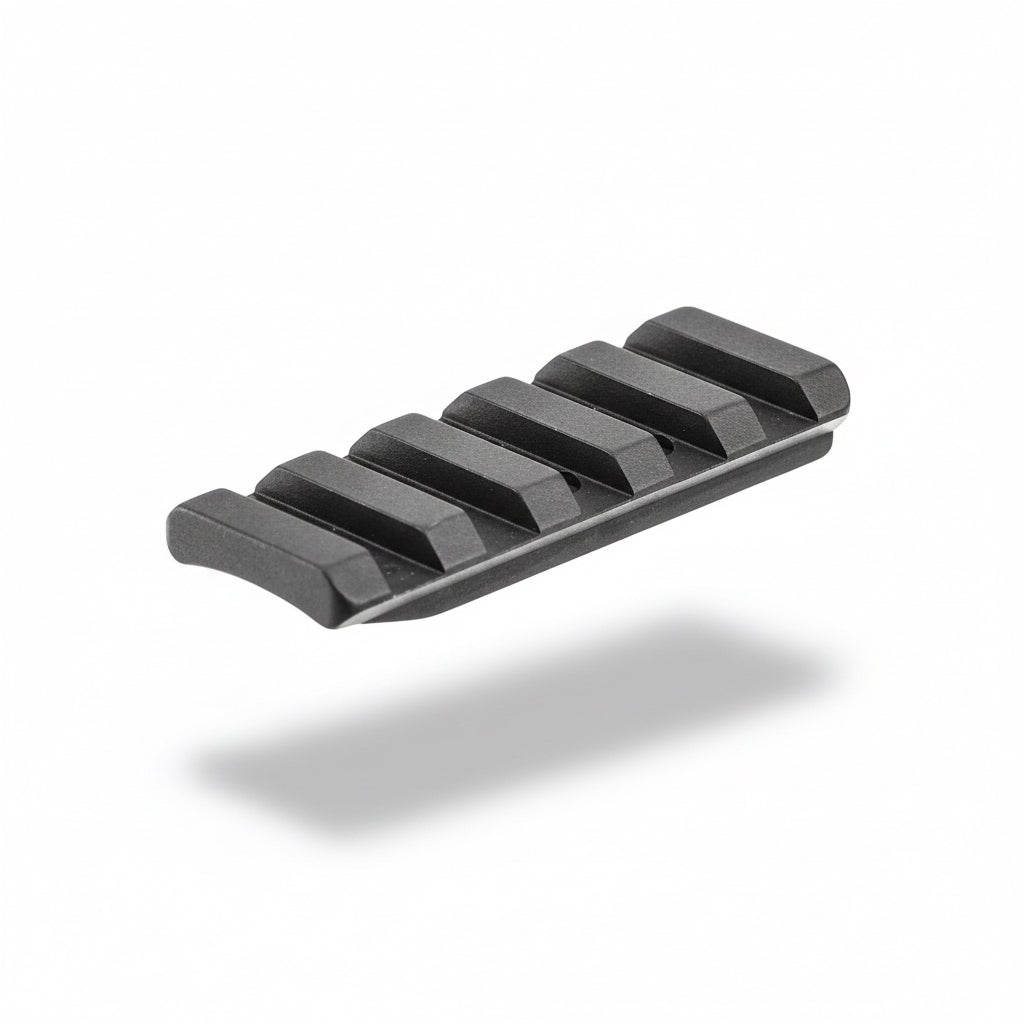

Manufacturer/Article numbers: 85mm / BH 8mm: T0908-0013; 55mm / BH 8mm: T0905-0008; 55mm / BH 10mm: T0905-0010; 35mm / BH 8mm: T0903-0008.
Scope of Delivery
- 1x ERATAC Picatinny Attachment in the selected variant
Not included:
No red dot, no laser rangefinder, no optic, no ERATAC main mount, and no other accessories. Screws/adapters are only included to the extent they belong to the selected variant.
FAQ
Does the attachment fit every ERATAC mount?
No. It only fits the designated ERATAC interface or series. T7 and T4/T5 interfaces must not be confused.
What is more important: footprint or manufacturer name?
The footprint is crucial. An Aimpoint, RMR, Docter, or Picatinny attachment must mechanically match the device exactly.
Should an auxiliary red dot be mounted centrally or laterally?
Centric is often cleaner for top-mount logic, lateral can be faster for offset use. This depends on the main optic, shooting stance, and training.
Can the attachment affect the point of impact?
It does not directly change the main optic, but it can change weight and balance. After mounting and adding the auxiliary device, the setup should be checked.
When is this product not useful?
If the interface does not fit, the accessory is too heavy, or the operation of turrets, eyepiece, or magnification ring is blocked.
Conclusion: The ERATAC Picatinny Attachment is useful if you want to cleanly integrate accessories on a compatible ERATAC mount. The interface, footprint, height, and operability are crucial – not just the idea of "adding something else".
