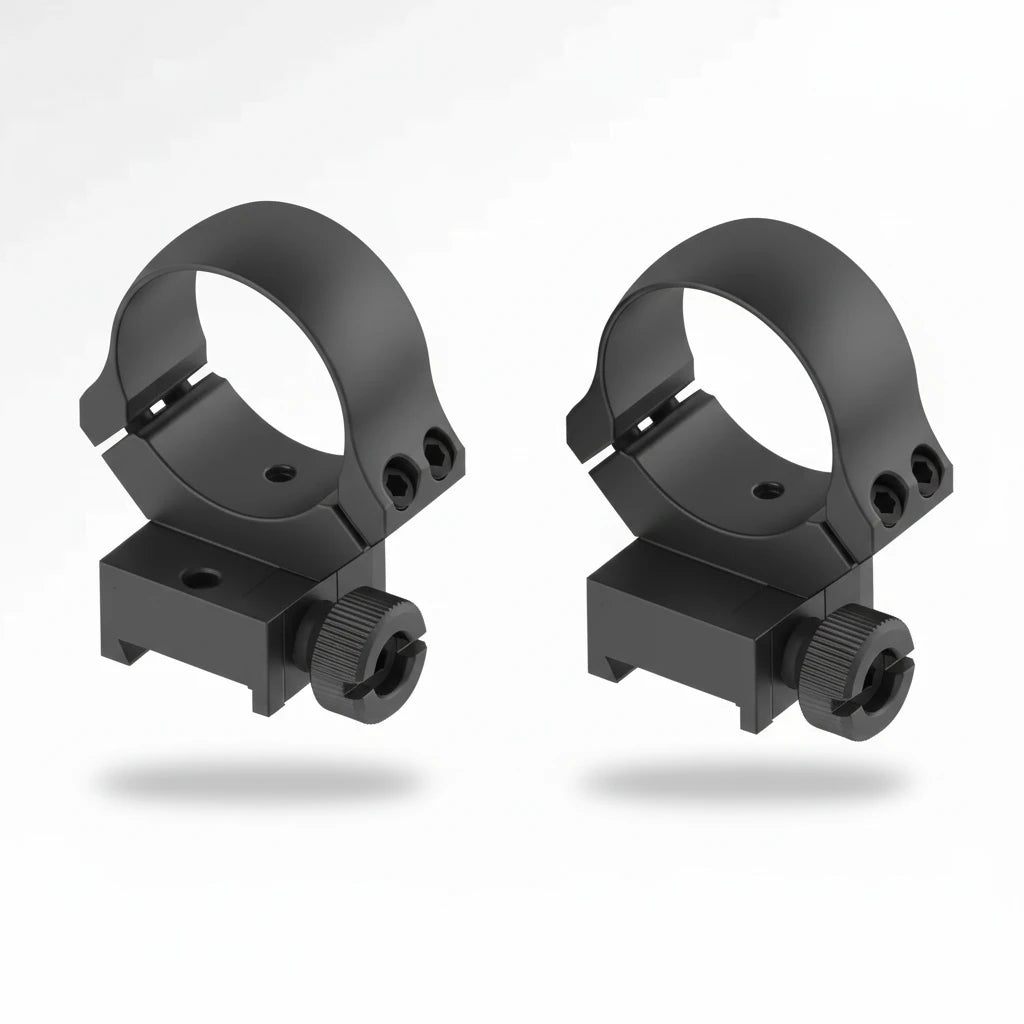

Recknagel AKM 16 mm – Pivot Mount for 16mm Dovetail Rails and Hunting Optics

For 16mm dovetail rails, fit matters more than brand name.
The Recknagel AKM 16 mm is a pivot mount for firearms with a 16mm dovetail and offers variants for round tubes, rail optics, and different mounting heights.

It is aimed at users who want to make clean use of a classic dovetail rail without unnecessarily converting their firearm to Picatinny first.

Why mount 16 mm directly?

A 16mm dovetail is a dedicated weapon base. A suitable direct mount can position the optic lower, more stably, and more cleanly on the weapon than an additional Picatinny adapter.

• You use the weapon's existing dovetail rail directly.
• You choose the variant suitable for your optic's mounting interface.
• You reduce unnecessary mounting height.
• You maintain a more natural and ergonomic shooting position.

Understanding Mounting Height

For many Recknagel mounts, the mounting height describes the distance from the mount base to the bottom edge of the scope's main tube. It is not automatically the optical center.

• Very low mounting height: close to the barrel axis, good cheek weld, but little clearance for large objectives.
• Medium mounting height: usually sensible for classic hunting scopes with 50–56 mm objectives.
• High mounting height: sensible for large objectives, thick barrels, or when additional front attachments/accessories require clearance.

As a rule of thumb: as low as possible, as high as necessary. The decisive factor is always the real outer diameter of the objective, not just the nominal specification.

Variants – Selecting the Right 16 mm Dovetail

First, check if your firearm actually has a 16mm dovetail. Then select the optic interface and mounting height.

• Ø 30 mm, Height 15.0 mm – SKU 43030-1500
• Ø 1 inch / 26 mm, Height 14.0 mm, without support – SKU 44026-0500
• Ø 1 inch / 26 mm, Height 19.0 mm, without support – SKU 44026-1000
• Ø 1 inch / 26 mm, Height 27.0 mm, without support – SKU 44026-1800
• Ø 30 mm, Height 14.0 mm, without support – SKU 44030-0500
• Ø 30 mm, Height 19.0 mm, without support – SKU 44030-1000
• Ø 30 mm, Height 27.0 mm, without support – SKU 44030-1800
• Ø 34 mm, Height 14.0 mm, without support – SKU 44034-0500
• Ø 34 mm, Height 19.0 mm, without support – SKU 44034-1000
• Ø 34 mm, Height 27.0 mm, without support – SKU 44034-1800
• Ø 36 mm, Height 14.0 mm, without support – SKU 44036-0500
• Ø 36 mm, Height 19.0 mm, without support – SKU 44036-1000
• Ø 36 mm, Height 27.0 mm, without support – SKU 44036-1800
• Ø 40 mm, Height 14.0 mm, without support – SKU 44040-0500
• Ø 40 mm, Height 19.0 mm, without support – SKU 44040-1000
• Prism 45°, Height 15.0 mm, without support – SKU 44045-0600
• Swarovski SR, Height 14.0 mm, without support – SKU 44053-0500
• Prism 70°, without support – Version 0400 – SKU 44070-0400
• Prism 70°, without support – Version 0900 – SKU 44070-0900

Key Features

• Recknagel AKM pivot mount for 16mm dovetail rails
• Variants for 26 mm, 30 mm, 34 mm, 36 mm, and 40 mm depending on selection
• Rail variants for 45°, 70°, and Swarovski SR depending on the optic
• Various mounting heights for hunting and sports optics
• Professional direct mount without a Picatinny detour

Who is it suitable for?

• Hunters: if a classic firearm with a 16mm dovetail is used.
• Owners of European hunting optics: if rail-mounted optics need to be cleanly mounted.
• Gunsmiths: if the interface and mounting height need to be precisely selected.
• Sport shooters: if a stable dovetail rail mount is required.

FAQ

The Recknagel AKM 16 mm is a high-quality rifle scope mount for firearms with a 16mm dovetail, where direct fit and clean mounting height are crucial.
