Recknagel Weaver AKM Lever – Quick-release Mount for Picatinny/Weaver Riflescopes
If you want to quickly remove an optic, the mount must not become a weak point.

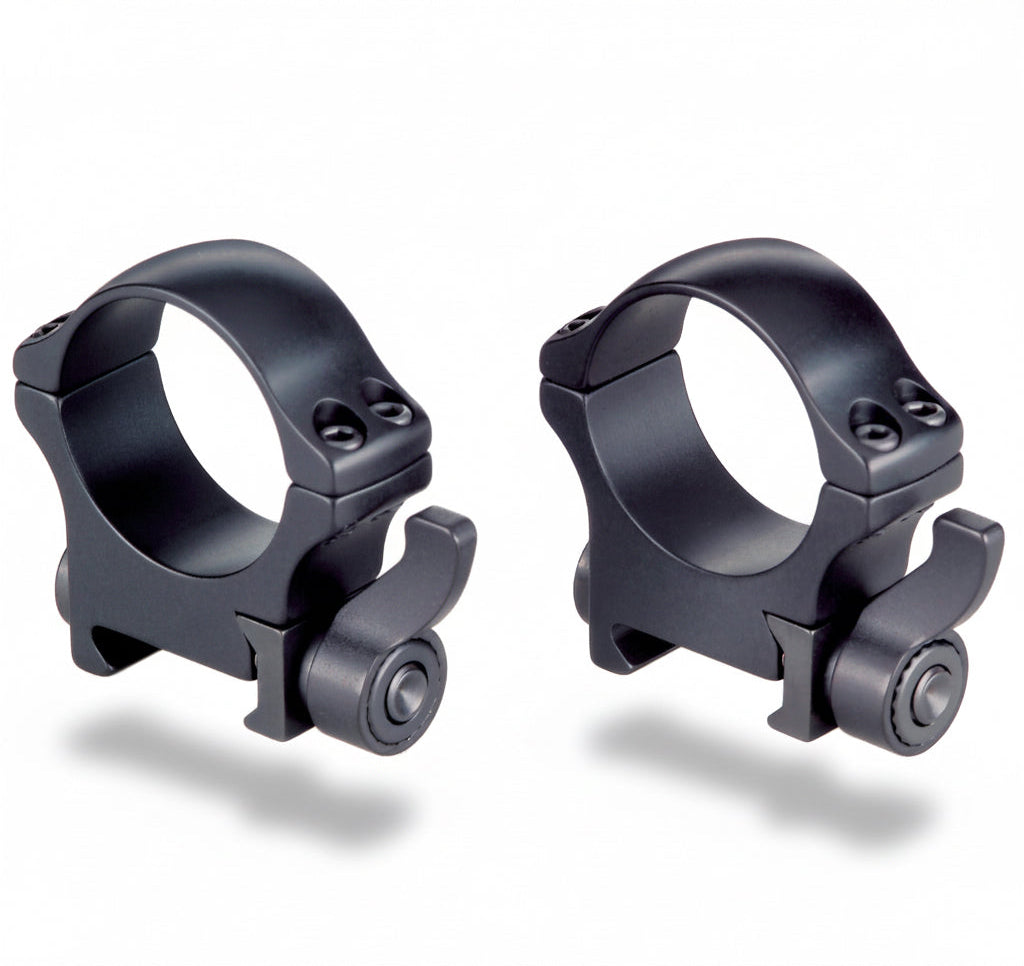

The Recknagel Weaver AKM Lever is a quick-release/lever mount for riflescopes on Picatinny and Weaver rails.
It is useful if you switch between optics, want to quickly disassemble the weapon for transport or cleaning, or plan a backup/interchangeable setup – without having to work on the mount with tools every time.
Why the Recknagel Weaver AKM Lever?
✔ tool-free lever clamping for quick optic changes
✔ for Picatinny and Weaver rails
✔ variants for 26 mm/1 inch and 30 mm tubes
✔ PSG and Pica variants depending on mounting height
✔ ideal for hunting, interchangeable optics, transport and flexible setups
✔ Recknagel quality for repeatable mounting with correct application
Why a lever mount?
A lever mount is not automatically better than a nut mount – it is built for a different purpose. It pays off if you want to repeatedly remove and remount the optic.
- You remove the riflescope without tools.
- You can carry out transport, cleaning or setup changes more quickly.
- You remount the optic in the same position with careful handling.
- You use Picatinny/Weaver rails flexibly for various optic solutions.
Lever vs. Nut
❌ Nut is often the permanent solution, but requires tools
✔ Lever allows for quick changes and controlled disassembly
If you never remove the optic, a nut is often sufficient. If you change, transport or work flexibly, the lever becomes a strong advantage.
Understanding mounting height correctly
For many Recknagel mounts, the mounting height describes the distance from the mount base to the lower edge of the riflescope's central tube. It is not automatically the optical center.
-
Very low mounting height: close to the bore axis, good cheek weld, but little clearance for large objective lenses.
-
Medium mounting height: usually suitable for classic hunting scopes with 50–56 mm objective lenses.
-
High mounting height: useful for large objective lenses, thick barrels, or when additional front attachments/accessory solutions require clearance.
As a rule of thumb: as low as possible, as high as necessary. The decisive factor is always the actual outer diameter of the objective lens, not just the nominal specification.
Practical Guide: Using a Lever Mount Correctly
-
Always the same slot: Mark the mounting position and consistently use the same one.
-
Keep rail clean: Dirt in the slot can change the contact surface.
-
Check lever tension: too loose loses grip, too tight unnecessarily strains mechanics and rail.
-
Check shot: check point of impact after mounting, changing, or heavy stress.
Variants – Tube, Height and Lever Design
These variants are structured by tube diameter and mounting height. Choose the lowest sensible mounting height that safely allows for objective clearance and cheek weld.
- Weaver Ø26mm H13 Lever – SKU 57526-0500
- PSG Ø26mm H6 Lever – SKU 57526-0601
- PSG Ø26mm H9.5 Lever – SKU 57526-0951
- Weaver Ø26mm H18 Lever – SKU 57526-1000
- Pica 1-pc Ø26mm H15.5 Lever – SKU 57526-1110
- PSG Ø26mm H14 Lever – SKU 57526-1401
- Weaver Ø26mm H26 Lever – SKU 57526-1800
- PSG Ø26mm H19 Lever – SKU 57526-1901
- PSG Ø26mm H22 Lever – SKU 57526-2201
- Pica 1-pc Ø26mm H10.5 Lever – SKU 57526-5110
- Weaver Ø30mm H13 Lever – SKU 57530-0500
- PSG Ø30mm H6 Lever – SKU 57530-0601
- PSG Ø30mm H9.5 Lever – SKU 57530-0951
- Weaver Ø30mm H18 Lever – SKU 57530-1000
- Pica 1-pc Ø30mm H15.5 Lever – SKU 57530-1110
- PSG Ø30mm H12 Lever – SKU 57530-1201
- PSG Ø30mm H14 Lever – SKU 57530-1401
- Weaver Ø30mm H26 Lever – SKU 57530-1800
- PSG Ø30mm H19 Lever – SKU 57530-1901
- PSG Ø30mm H22 Lever – SKU 57530-2201
- Pica 1-pc Ø30mm H10.5 Lever – SKU 57530-5110
Instructor Tip: Changing Mounts is a Process
A quick-release mount only saves time if the process is trained: same rail position, clean seating, lever fully closed, regularly check point of impact. The mount alone does not ensure repeatability – it's the mount plus consistent handling.
Most Important Features
- Recknagel Weaver AKM with lever clamping
- for Picatinny and Weaver rails
- variants for 26 mm / 1 inch and 30 mm tubes
- various mounting heights for different optics
- tool-free disassembly and assembly
- useful for interchangeable optics, transport and flexible hunting/sport setups
Suitable For
-
Hunters with interchangeable optics: if stand hunting scope, driven hunt optic or other setup is used flexibly.
-
Sport shooters: if optics are changed for different disciplines.
-
Gamekeepers: if cleaning and transport should be easier without tools.
-
Precision users: if QD function is combined with clean mounting practice.
Important Mounting Note
Mounts are precision components. Before purchase, the weapon system, rail/prism dimensions, tube diameter, mounting height and optic receiver must fit exactly.
Thoroughly degrease mounting surfaces, tighten screws according to manufacturer's/gunsmith's specifications and check the point of impact after mounting. This text does not replace a professional mounting inspection.
Instructor Tip: Don't guess the point of impact
After every change to the mount, a check shot at the range is necessary. Even high-quality mounts can only work repeatedly if they are seated cleanly, always grip in the same position, and the clamping is correctly adjusted.
For interchangeable mounts, mark the Picatinny slot used. This reduces operating errors and helps you find your defined position more quickly.
FAQ
Does the point of impact remain the same after removal?
A high-quality lever mount supports repeatability, but only with the same position, a clean rail, and correct clamping. A check shot remains useful.
Lever or nut – which is better?
For permanent, fixed installation, a nut is very robust. For frequent removal or changing, a lever is more practical.
Which height should I choose?
As low as possible, as high as necessary. Objective diameter, barrel contour, caps, and cheek weld are decisive.
The Recknagel Weaver AKM Lever is a professional quick-release mount for Picatinny/Weaver rails, when fast optic changes and clean repeatability are paramount.
