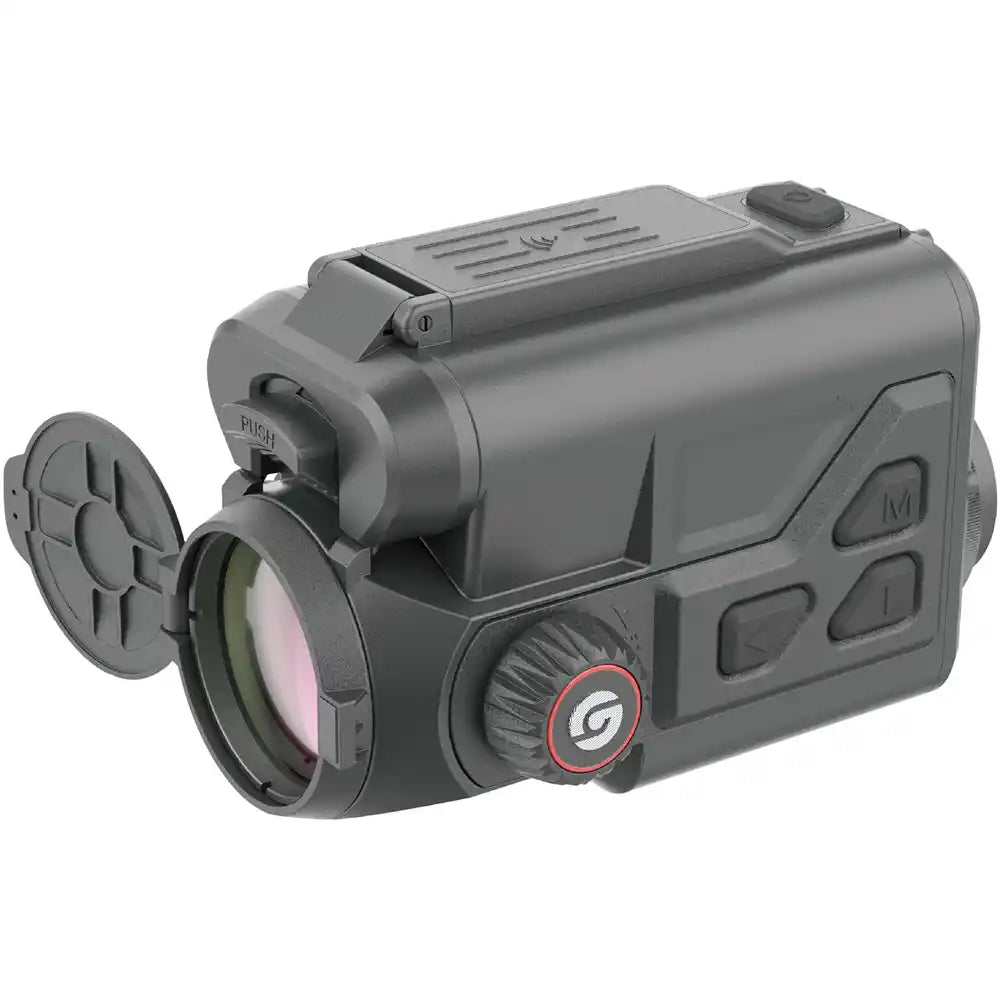

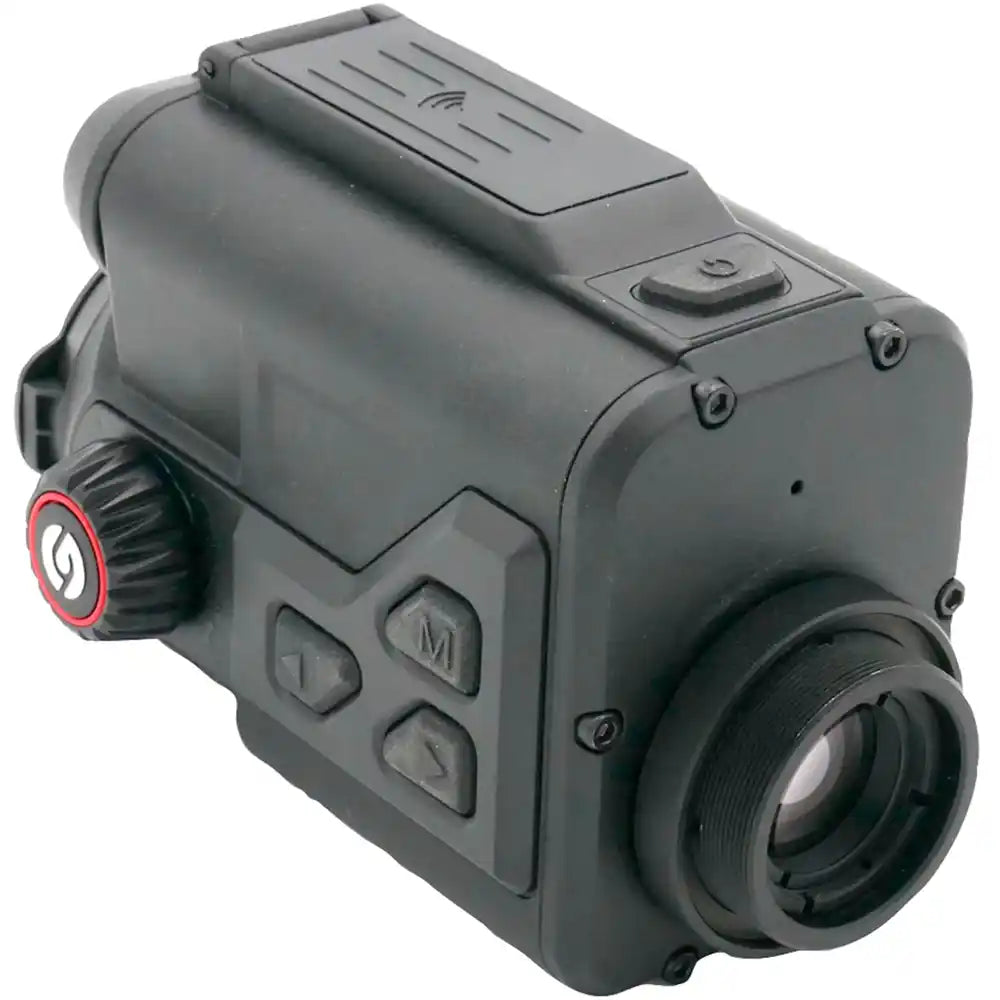

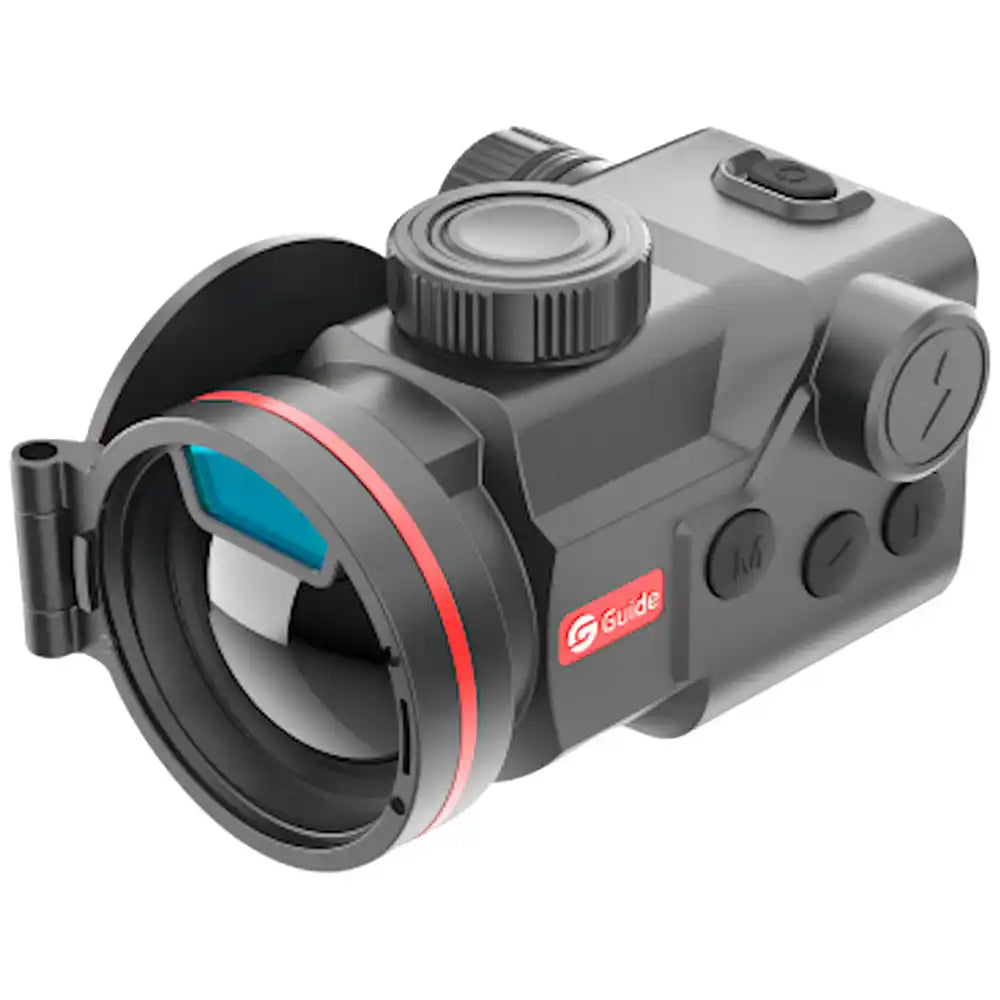

GUIDE TB Series – Thermal Imaging Clip-On Devices for Precise Use
If your daytime optics are to remain, the clip-on device must work cleanly within your setup.
The GUIDE TB series is a range of thermal imaging clip-on devices for users who wish to continue using their existing rifle scope and are looking for a practical thermal imaging solution for night, poor visibility, and demanding hunting ground conditions.
The decisive factor for a clip-on is not just the image. It is crucial whether the mounting, optical axis, adapter, and repeatability match. You should choose the variant based precisely on this.
Why specifically the GUIDE TB Series?
✔ Clip-on operation in front of existing daytime optics
✔ Variants from the compact TB430 to the high-end TB1250 LRF Pro
✔ 12-µm sensors and Full-HD AMOLED display depending on the model
✔ 35mm models for more overview, 50mm models for greater range performance
✔ 2.0 models with modern image processing and shutterless concept
✔ LRF/Pro variants for additional range certainty
Why a Thermal Imaging Clip-On Device?
A clip-on device extends your existing rifle scope instead of replacing it. You maintain your familiar shooting position and reticle logic but add thermal imaging capability.
- You continue to use your familiar daytime optics
- You don't have to switch completely to a different aiming system
- You can add thermal imaging technology situationally
- You work at night or in poor visibility with more information
- You can choose between a compact design and more range, depending on the model
The difference to a handheld thermal imaging device:
❌ Handheld device: great for observation, but not part of the aiming optics
✔ TB clip-on device: used in front of the daytime optics and therefore must be mounted coaxially, stably, and with repeatable accuracy
That's precisely why, with the TB series, not only the sensor is important, but the entire setup of device, adapter, optics, and mounting.
Practical Added Value: Mounting Determines Point of Impact
With clip-on devices, many problems do not arise from the sensor, but from poor adapter selection, crooked seating, or unclean repeatable mounting.
After mounting, transport, or adapter change, you should check the point of impact. A good clip-on device saves effort – but does not replace a thorough setup check.
Key Features
- Thermal imaging clip-on devices for mounting in front of daytime optics
- Variants: TB430, TB630, TB650 2.0, TB650P 2.0, TB1250 LRF Pro
- 400, 640, and 1280 sensors depending on the model
- 35mm optics for field/forest all-round, 50mm optics for greater distance
- Full-HD AMOLED display on many models
- 50 Hz image refresh rate for smooth display
- Robust housing design for hunting use
- IP67/IP68 protection depending on the version
- Adapter-dependent integration into existing rifle scope setups
Our Assessment
The TB series is strong when you're not just looking for any thermal imaging device, but a clip-on solution for an existing aiming system. The practical benefit comes from three points: image quality, mounting quality, and suitable variant selection.
The TB430 is a sensible entry point if you want to stay compact yet use a real clip-on device. The TB630, with its 640 sensor and 35mm lens, offers more detail without unnecessarily narrowing the field of view. The 50mm models are the choice if you frequently work at longer field distances.
The TB1250 LRF Pro is in a different league: 1280 sensor, 50mm optics, and integrated rangefinder. This is worthwhile for users who truly need high image reserves and more distance information.
Who It's Suitable For
-
Hunters: if an existing daytime optic is to be meaningfully expanded with thermal imaging
-
Hunting grounds with varying distances: if forest, field edge, and open areas need to be covered
-
Stand hunting & night hunting: if image quality, adapter choice, and point of impact are important
-
Premium users: if 640 or 1280 sensors should provide true detail reserves
-
Setup optimizers: if daytime optics, adapter, and clip-on device are considered as a system
Why exactly for you?
If you don't want to change your entire optical logic but wish to extend your existing daytime optics with thermal imaging capability, the TB series is the right product category.
Important Legal Notice:
The use of thermal imaging clip-on devices in conjunction with firearms is legally particularly sensitive in Germany and other countries and may be regulated differently depending on the federal state.
Before purchasing and using, check the applicable hunting, weapons, and state legal regulations. This text does not constitute legal advice.
Which Variant Suits Which Application?
-
TB430: 400×300 sensor with 35mm optics – compact entry, good for mixed forest-field territories and users who keep weight and price in mind.
-
TB630: 640 sensor with 35mm optics – stronger in detail, more broadly usable, and very interesting for field & forest.
-
TB650 2.0: 640×512 sensor with 50mm optics – more range reserve and tighter target information, especially in open areas.
-
TB650P 2.0: Premium variant of the 50mm class – sensible if you're looking for the stronger 2.0 platform with Pro/LRF focus and maximum practical reserve.
-

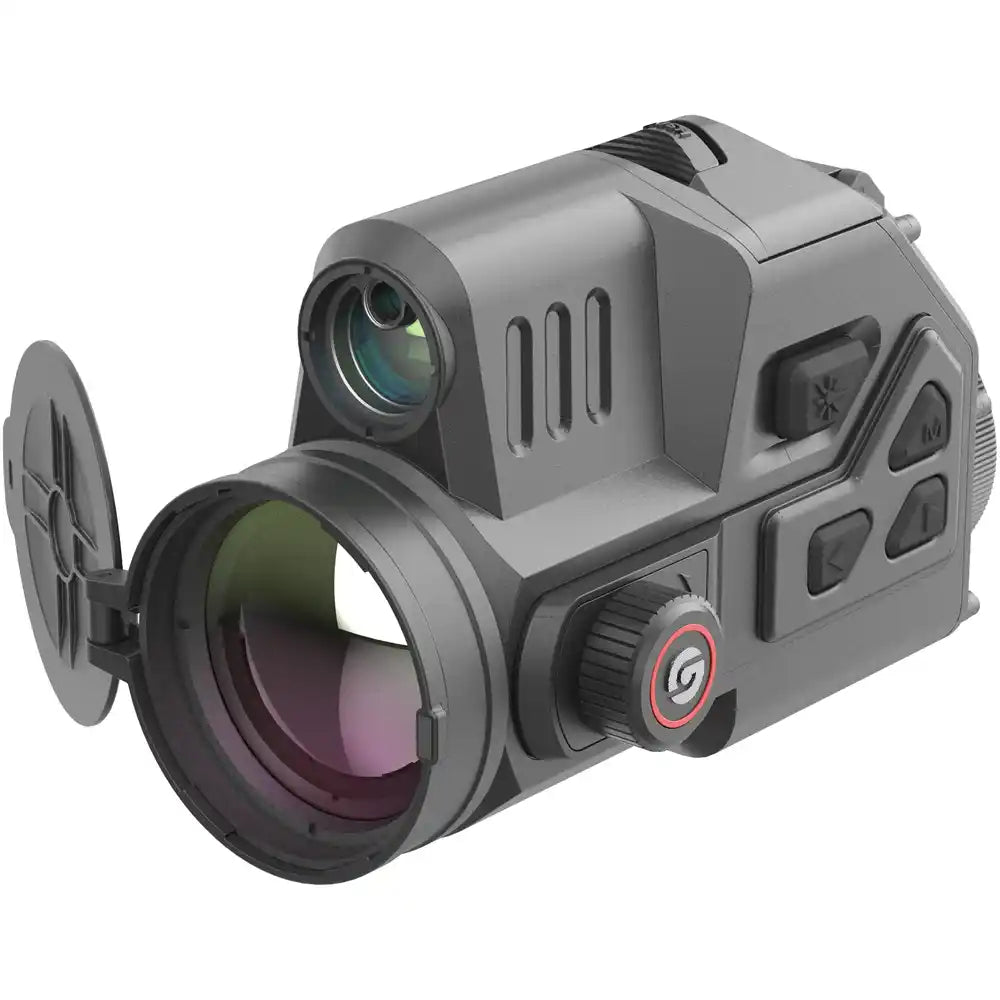

TB1250 LRF Pro: High-end clip-on with 1280×1024 sensor and integrated LRF up to approx. 1500 m, up to approx. 2600 m detection.
Practical Tip: 35 mm or 50 mm?
35mm gives you more overview and is often more comfortable when distances vary or you work in a forest-field mix.
50mm brings more detail and range but offers a narrower field of view. This is strong in open areas but can provide too little overview in dense stands.
Point of Impact & Zero – What You Should Realistically Check
A clip-on should maintain the point of impact as stably as possible. In practice, however, this always depends on the entire system: daytime optics, adapter, clamping, axial offset, repeated mounting, and condition of the contact surfaces.
- Mount adapter cleanly and without tension
- Always attach and lock the device consistently
- Keep contact surfaces clean
- Perform a control shot or point of impact check after initial mounting
- Re-check after a strong impact, transport, or adapter change
Technical Classification per Variant
-
TB430: 400×300 @ 12 µm, 35 mm F1.0, up to approx. 1800 m detection, good entry into the clip-on class.
-
TB630: 640×512 @ 12 µm, approx. 20 mK NETD, 35 mm F1.0, Full-HD AMOLED, up to approx. 1800 m detection.
-
TB650 2.0: 640×512 @ 12 µm, approx. 18–20 mK NETD, 50 mm, up to approx. 2600 m detection, 2.0 image processing.
-
TB650P 2.0: 640×512 class with 50mm optics and Pro/P features depending on the version, designed for more demanding setups.
-
TB1250 LRF Pro: 1280×1024 @ 12 µm, 50 mm, integrated LRF up to approx. 1500 m, up to approx. 2600 m detection.
FAQ
Is the TB series an observation device or a clip-on device?
The TB series is designed as a thermal imaging clip-on device. It is used in front of suitable daytime optics and is therefore a different product category than handheld thermal imaging monoculars.
Which variant is the best all-rounder?
For many users, a 640 model with 35mm optics is particularly well-balanced because it combines detail and field of view effectively. For open areas and greater distances, 50mm models are stronger.
Does it need to be re-zeroed after mounting?
A clip-on is designed for repeatable use, but a point of impact check remains mandatory. Adapter, daytime optics, and mounting play a practical role in this.
What does an LRF model offer?
A laser rangefinder helps to realistically assess distances. Especially at night, distances often appear shorter or longer than they actually are.
Does every TB model fit every rifle scope?
No. The objective lens diameter, adapter, optical axis, and type of use are crucial. The device must fit the existing optics as a system.
Especially in the area of thermal imaging clip-on devices, hunting clip-ons, and night hunting setups, it's not just the sensor that matters – but the combination of image performance, adapter, point of impact, and the right variant choice.
