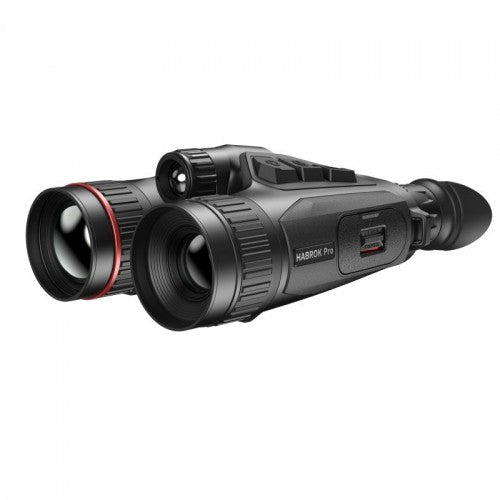

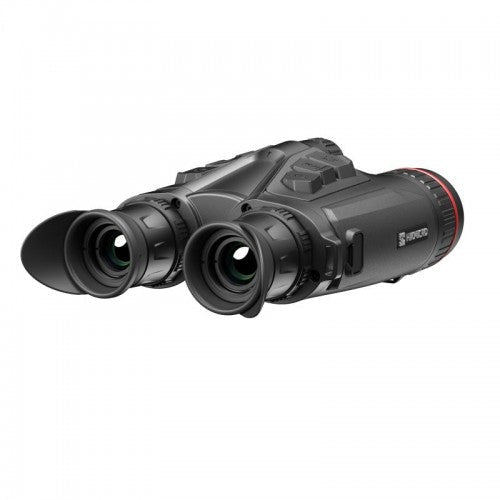

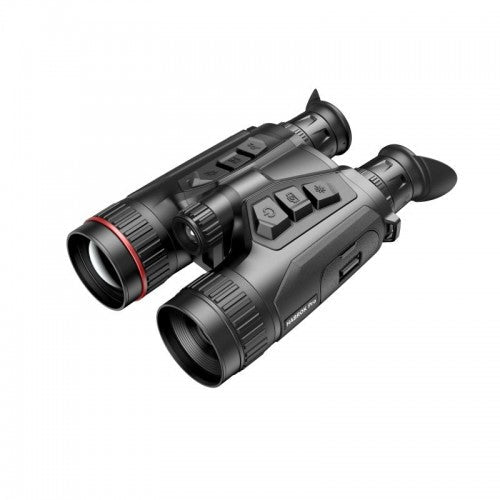

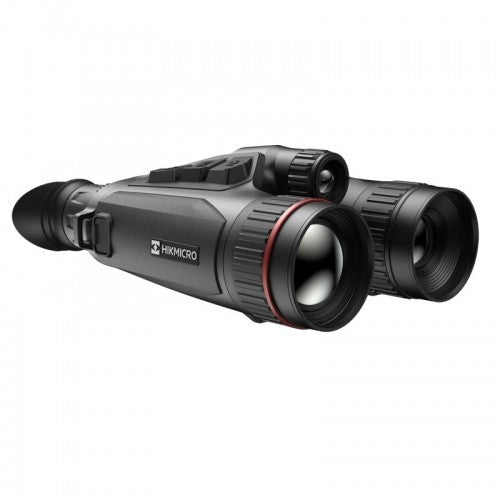

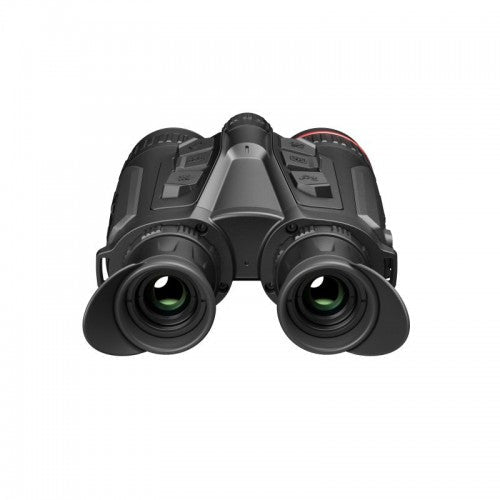

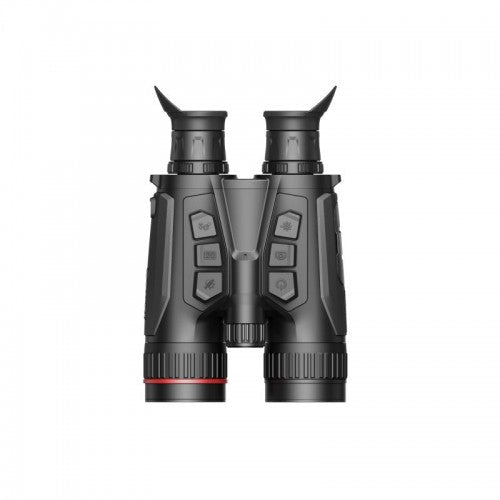

Hikmicro Binocular Habrok Pro HQ50LN – Multi-Spectrum Binoculars in a practical context

Multi-spectrum is powerful when thermal imaging alone is not enough.
Hikmicro Binocular Habrok Pro HQ50LN combines a thermal channel, an optical day/night channel, a laser rangefinder and IR support. In practice, it works exactly like this: thermal imaging finds, optics classify, LRF measures.

With a 640×512 thermal imaging sensor and a 50 mm thermal lens, the focus is on field hunting and long distances when thermal imaging, digital imaging and LRF are to be combined in one device.

Key features

• 640×512 Sensor – high-resolution thermal imaging class
• <15 mK NETD – better separation of small temperature differences
• 50 mm optics – field hunting and long distances, when thermal imaging, digital imaging and LRF are to be combined in one device
• Detection up to approx. 2600 m according to manufacturer – real performance depends on weather, target size and contrast
• Integrated LRF up to approx. 1000 m – do not estimate distance, but measure it
• 940 nm IR – more discreet, but usually less range
• LRF up to approx. 1000 m – important because distances in thermal images are often misjudged at night
• Designed for: field hunting and long distances, when thermal imaging, digital imaging and LRF are to be combined in one device

Our assessment

Hikmicro Binocular Habrok Pro HQ50LN is particularly useful if your application profile matches the technical data. 640×512 is the class where thermal imaging becomes significantly more relaxed: more pixels on game, more structure in the background and more reserves for digital magnification. Particularly useful for field hunting, larger clearings, wide meadows and users who not only want to detect, but also to accurately classify.

50 mm is clearly designed for distance. This provides more detail in wide areas, but is less comfortable for very dense forest situations. Ideal for field hunting, large meadows, wide clearings and hunting grounds with long lines of sight.

Honest assessment: It is not ideal if you only scan in dense forest at very short distances. Lighter devices with a wider field of view are more comfortable for this.

Thermal imaging technology explained simply

Sensor resolution: 640×512 is the class where thermal imaging becomes significantly more relaxed: more pixels on game, more structure in the background and more reserves for digital magnification. Particularly useful for field hunting, larger clearings, wide meadows and users who not only want to detect, but also to accurately classify.

Focal length: 50 mm is clearly designed for distance. This provides more detail in wide areas, but is less comfortable for very dense forest situations. Ideal for field hunting, large meadows, wide clearings and hunting grounds with long lines of sight.

NETD: NETD around 15 mK or below is very strong: the device separates small temperature differences better. This helps in warm weather, high humidity, fog, drizzle or when game and background are thermally close to each other.

When is this model useful?

Practical profile: Field hunting and long distances, when thermal imaging, digital imaging and LRF are to be combined in one device.

• Feeding station / short sit: Here, a large field of view, a quick overview and low weight count more than maximum range.
• Forest edge / mixed territory: Here you need a compromise between field of view and depth of detail – 19 to 35 mm are often particularly practical.
• Field hunting / wide meadows: Here, larger sensors and longer focal lengths win, because more pixels are available on the target and more basic magnification.
• Difficult weather: The lower the NETD value, the more likely it is that structure will remain in the image in humid air, rain, fog or a warm background.

Thermal + Optics: how to use multi-spectrum correctly

• Thermal imaging: fastest method for locating heat sources – especially in darkness, vegetation and confusing terrain.
• Digital/optical channel: better visible details when light or IR support is sufficient.
• LRF: particularly important because distances in thermal images often appear shorter or longer than they are.
• 940 nm IR support – more discreet for wildlife observation, but usually with less range than 850 nm

Operation in real use

• First overview, then zoom: Start with basic magnification. Only use digital zoom when the target has already been found.
• Consciously set focus: Poor focus acts like poor sensor performance. Especially with 35, 50 or 60 mm optics, clean focusing is crucial.
• Don't overvalue palettes: White Hot/Black Hot are usually the working modes. Color palettes help situationally, but do not replace clean image settings.
• Plan for weather: Humid air, drizzle, fog and warm ground reduce contrasts. Then NETD and image processing are particularly important.
• Plan batteries realistically: Cold, display brightness, WLAN, recording and LRF shorten battery life. A spare battery or power bank is essential for longer nights.

Technical data

• Model: Hikmicro Binocular Habrok Pro HQ50LN
• Product type: Multi-spectrum binoculars
• Sensor: 640×512
• Thermal sensitivity: <15 mK
• Lens/Focal length: 50 mm F1.0
• Detection/Acquisition range: up to approx. 2600 m according to manufacturer
• Laser rangefinder: up to approx. 1000 m according to manufacturer
• IR wavelength: 940 nm
• Display: 1920×1080
• Weight: approx. 975 g
• Battery life: up to approx. 7 h according to manufacturer

FAQ

Especially with thermal imaging technology, it is not the largest numerical value that decides, but the right combination of sensor resolution, focal length, NETD, field of view and actual application profile.
