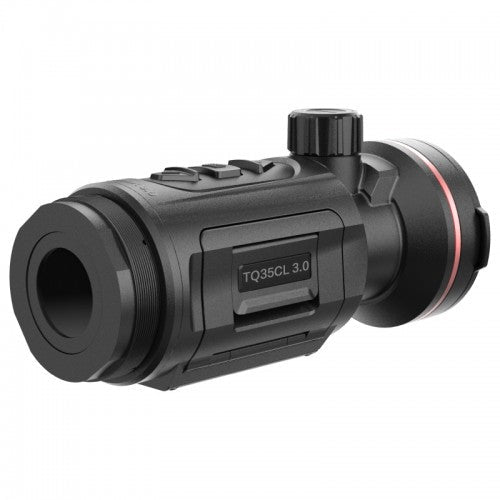

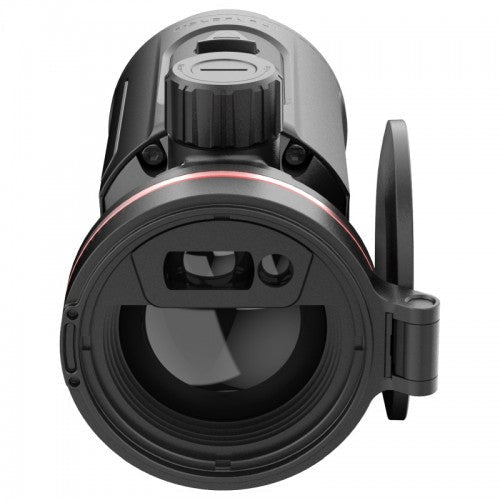

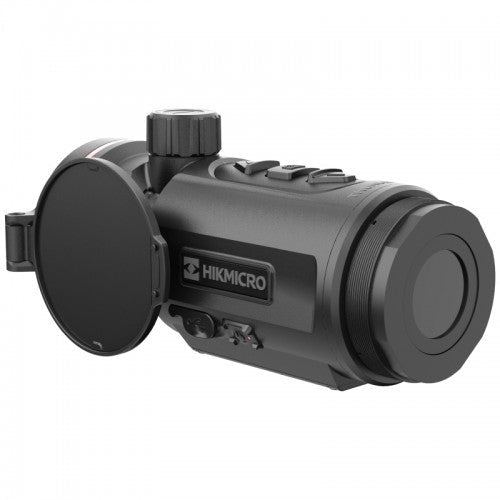

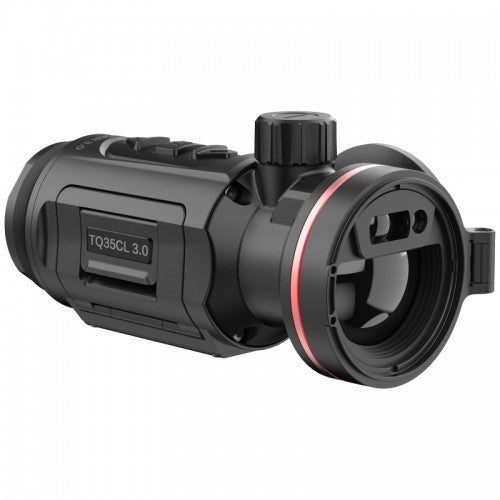

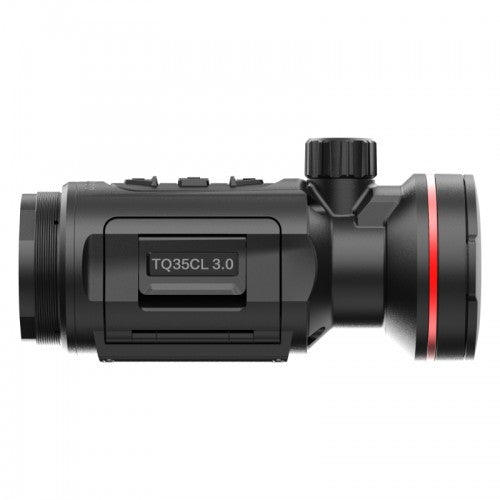

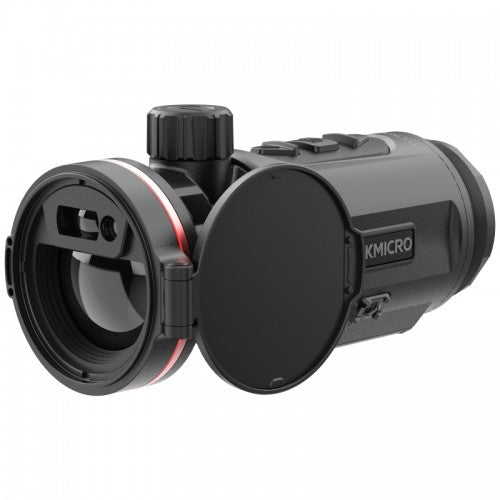

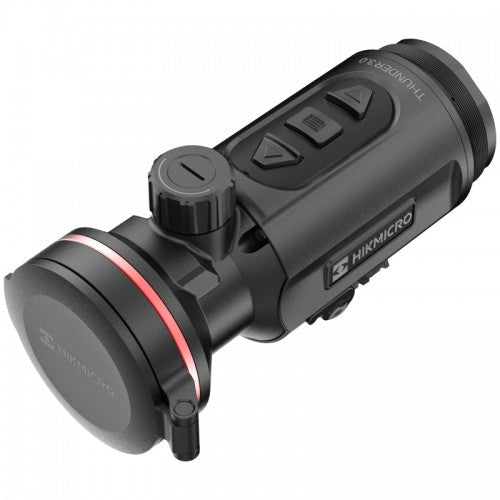

Hikmicro Clip-On Thunder TQ35CL 3.0 – Thermal Imaging Clip-On / Practical Classification
A thermal imaging clip-on is not just a pure observation device – it is part of your optical system.
The Hikmicro Clip-On Thunder TQ35CL 3.0 is used in front of existing day optics. Therefore, not only the image matters, but also correct mounting, axial alignment, adapter selection, and checking the point of impact.
Technically, this model, with its 640×512 sensor, <15 mK NETD, and 35 mm optics, is designed as an all-round clip-on for forest edges, fields, and high seats with high detail reserves.
Why exactly this model?
✔ Technical data is not just mentioned here but practically classified
✔ Clear distinction: feeding stations, forest, field edge, or field hunting
✔ Sensor, focal length, and sensitivity are explained as buying decision factors
✔ No blanket "more is better" logic, but genuine scenario recommendations
Key Features
- 640×512 Sensor – high-resolution thermal imaging class
- <15 mK NETD – better separation of small temperature differences
- 35 mm Optics – all-round clip-on for forest edges, fields, and high seats with high detail reserves
- Detection up to approx. 1800 m according to manufacturer – actual performance depends on weather, target size, and contrast
- Integrated LRF up to approx. 1000 m – measure distance, don't estimate
- LRF up to approx. 1000 m – important because distances in thermal images are often misjudged at night
- Designed for: All-round clip-on for forest edges, fields, and high seats with high detail reserves
Our Assessment
The Hikmicro Clip-On Thunder TQ35CL 3.0 is particularly useful if your application profile matches the technical data. 640×512 is the class where thermal imaging becomes significantly more relaxed: more pixels on game, more structure in the background, and more reserves for digital magnification. Especially useful for field hunting, larger clearings, wide meadows, and users who not only want to discover but also classify accurately.
35 mm is the classic all-round/field edge range. You get more base magnification and better detail recognition, but you have to work with a narrower field of view. Strong for open territories, clearings, and medium to longer distances.
Honest classification: It is not ideal as a handheld scanner for hours of searching; a monocular is more comfortable for that. As an attachment, its effectiveness depends on clean mounting, suitable day optics, and a checked point of impact.
Thermal Imaging Technology Explained Simply
Sensor Resolution: 640×512 is the class where thermal imaging becomes significantly more relaxed: more pixels on game, more structure in the background, and more reserves for digital magnification. Especially useful for field hunting, larger clearings, wide meadows, and users who not only want to discover but also classify accurately.
Focal Length: 35 mm is the classic all-round/field edge range. You get more base magnification and better detail recognition, but you have to work with a narrower field of view. Strong for open territories, clearings, and medium to longer distances.
NETD: A NETD of around 15 mK or less is very strong: the device separates small temperature differences better. This helps in warm weather, high humidity, fog, drizzle, or when game and background are thermally close to each other.
The most important buying decision:
❌ Small sensor + short focal length: do not buy for long-range field hunting.
✔ Small sensor + short focal length: ideal for feeding stations, forest, quick overview, and short control checks.
❌ Large focal length: not automatically better if you are working in dense forest.
✔ Large focal length: strong if you need to cover open areas, field edges, and longer distances.
When is this model useful?
Practical Profile: All-round clip-on for forest edges, fields, and high seats with high detail reserves.
-
Feeding station / short high seat: Here, a wide field of view, quick overview, and low weight count more than maximum range.
-
Forest edge / mixed territory: Here you need a compromise between field of view and depth of detail – 19 to 35 mm are often particularly practical.
-
Field hunting / wide meadows: Here, larger sensors and longer focal lengths win, because more pixels are on the target and more base magnification is available.
-
Difficult weather: The lower the NETD value, the more structure remains in the image in humid air, rain, fog, or with a warm background.
Practical Tip: Don't just buy range
The manufacturer's range tells you that a standard target can be detected – but it doesn't automatically tell you how comfortably you will work in the field.
For feeding stations, a wide field of view is often more important than a 2,000 m range. For field hunting, it's the other way around: more focal length and more sensor resolution provide significantly more reserves.
Clip-On Practice: Point of Impact, Adapter and Control
With a thermal imaging attachment, the mounting determines its utility. A strong image is of little use if the device is not cleanly aligned with the day optics or does not work reproducibly after attachment.
-
Adapter choice: must match the objective diameter and optical axis.
-
Point of impact: always check after mounting and after transport.
-
35 mm vs. 50 mm: 35 mm is more flexible for forest edges and mixed territories; 50 mm is more designed for fields and long distances.
-
384 vs. 640: 384 is sufficient for many high seat situations; 640 provides more detail reserves and a more relaxed image with digital magnification.
Practical Tip: Don't just try it out before the high seat
Mount the clip-on, adapter, and day optics calmly beforehand. Check fit, image position, and point of impact under controlled conditions.
In the field, the device should only be used – no further explanations should be necessary.
Operation in Real Use
-
First overview, then zoom: Start with basic magnification. Only use digital zoom once the target has been found.
-
Focus consciously: Poor focus acts like poor sensor performance. Especially with 35, 50, or 60 mm optics, clean focusing is crucial.
-
Don't overrate palettes: White Hot/Black Hot are usually the working modes. Color palettes help situationally but do not replace proper image settings.
-
Plan for weather: Humid air, drizzle, fog, and warm ground reduce contrast. In such cases, NETD and image processing are particularly important.
-
Plan batteries realistically: Cold, display brightness, WLAN, recording, and LRF shorten battery life. A spare battery or power bank is essential for longer nights.
Important Note:
Ranges, battery life, NETD values, and detection specifications are manufacturer's Angaben and in practice depend on weather, target size, humidity, temperature contrast, settings, and stability.
For clip-on, attachment, or hunting use, legal requirements, mounting, adapters, point of impact, and safe application must always be checked before use.
Technical Data
-
Model: Hikmicro Clip-On Thunder TQ35CL 3.0
-
Product Type: Thermal Imaging Clip-On / Attachment
-
Sensor: 640×512
-
Thermal Sensitivity: <15 mK
-
Lens/Focal Length: 35 mm F1.0
-
Detection/Recognition Range: up to approx. 1800 m according to manufacturer
-
Laser Rangefinder: up to approx. 1000 m according to manufacturer
-
Display: 1920×1080
-
Weight: approx. 525 g
-
Battery Life: up to approx. 5 h according to manufacturer
FAQ
Is this model more suitable for feeding stations or field hunting?
All-round clip-on for forest edges, fields, and high seats with high detail reserves. Sensor resolution and focal length are particularly crucial: short focal lengths provide an overview, long focal lengths provide detail at a distance.
What does sensor resolution mean in practice?
640×512 is the class where thermal imaging becomes significantly more relaxed: more pixels on game, more structure in the background, and more reserves for digital magnification. Especially useful for field hunting, larger clearings, wide meadows, and users who not only want to discover but also classify accurately.
Why is focal length so important?
35 mm is the classic all-round/field edge range. You get more base magnification and better detail recognition, but you have to work with a narrower field of view. Strong for open territories, clearings, and medium to longer distances.
What does NETD mean?
A NETD of around 15 mK or less is very strong: the device separates small temperature differences better. This helps in warm weather, high humidity, fog, drizzle, or when game and background are thermally close to each other.
When is a larger device still not better?
If you are working in dense forest, at a feeding station, or at short distances, a wide field of view can be more important than maximum range. A large lens is strong at a distance but not automatically more comfortable up close.
Especially with thermal imaging technology, it is not the largest numerical value that matters, but the appropriate combination of sensor resolution, focal length, NETD, field of view, and actual application profile.
