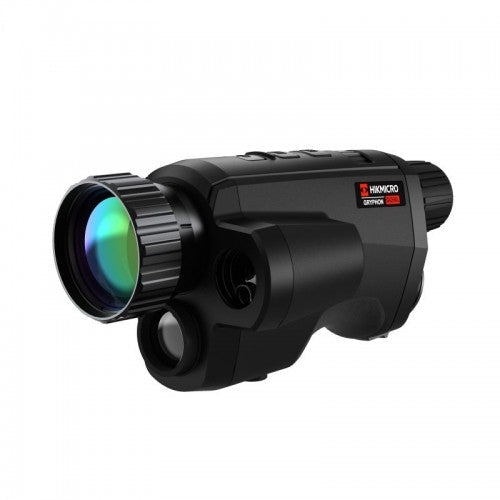

Hikmicro Gryphon GQ50L – Multi-Spectrum Monocular assessed in practice
Thermal imaging shows you heat – the additional channel gives you context.
The Hikmicro Gryphon GQ50L is useful if you want to use visible structure and range measurement in addition to thermal detection. This is particularly helpful if you not only want to know "something is there", but also want to better assess the situation.
The combination of a 640x512 sensor, 50 mm optics, and LRF makes it particularly interesting for field hunting and long distances when thermal imaging, digital imaging, and LRF are to be in one device.
Why exactly this model?
✔ Technical data is not just mentioned here, but practically classified
✔ Clear distinction: feeding station, forest, field edge, or field hunting
✔ Sensor, focal length, and sensitivity are explained as purchase decision factors
✔ No blanket "more is better" logic, but genuine scenario recommendations
Key Features
- 640x512 sensor – high-resolution thermal imaging class
- <35 mK NETD – better separation of small temperature differences
- 50 mm optics – for field hunting and long distances, when thermal imaging, digital imaging, and LRF are to be in one device
- Detection up to approx. 2600 m according to manufacturer – actual performance depends on weather, target size, and contrast
- Integrated LRF up to approx. 600 m – measure distance, don't estimate
- LRF up to approx. 600 m – important because distances in thermal images are often misjudged at night
- Designed for: field hunting and long distances, when thermal imaging, digital imaging, and LRF are to be in one device
Our Assessment
The Hikmicro Gryphon GQ50L is particularly useful if your application profile matches the technical data. 640x512 is the class where thermal imaging becomes significantly more relaxed: more pixels on game, more structure in the background, and more reserves for digital magnification. Particularly useful for field hunting, larger clearings, wide meadows, and users who not only want to detect but also accurately classify.
50 mm is clearly designed for distance. This provides more detailed depth over a wide area, but is less comfortable for very narrow forest situations. Ideal for field hunting, large meadows, wide clearings, and territories with long lines of sight.
Honest assessment: It's not ideal if you only scan in dense forest at very short distances. Lighter devices with a wider field of view are more comfortable for this.
Thermal Imaging Technology Explained Simply
Sensor Resolution: 640x512 is the class where thermal imaging becomes significantly more relaxed: more pixels on game, more structure in the background, and more reserves for digital magnification. Particularly useful for field hunting, larger clearings, wide meadows, and users who not only want to detect but also accurately classify.
Focal Length: 50 mm is clearly designed for distance. This provides more detailed depth over a wide area, but is less comfortable for very narrow forest situations. Ideal for field hunting, large meadows, wide clearings, and territories with long lines of sight.
NETD: NETD around 35 mK is solid, but not high-end. With clear temperature differences, it works reliably; in humid, warm weather or very low contrasts, more sensitive devices have visibly more reserves.
The most important purchasing decision:
❌ Small sensor + short focal length: do not buy for long-distance field hunting.
✔ Small sensor + short focal length: ideal for feeding stations, forests, quick overview, and short control checks.
❌ Long focal length: not automatically better if you are working in dense forest.
✔ Long focal length: strong if you need to cover open areas, field edges, and longer distances.
When is this model useful?
Practical Profile: Field hunting and long distances, when thermal imaging, digital imaging, and LRF are to be in one device.
-
Feeding station / short stand: Here, a large field of view, quick overview, and low weight count more than maximum range.
-
Forest edge / mixed territory: Here you need a compromise between field of view and detail depth – 19 to 35 mm are often particularly practical.
-
Field hunting / wide meadows: Here, larger sensors and longer focal lengths win, because more pixels are available on the target and more basic magnification.
-
Difficult weather: The lower the NETD value, the more likely it is that structure will remain in the image in humid air, rain, fog, or warm backgrounds.
Practical Tip: Don't just buy range
The manufacturer's range tells you that a standard target can be detected – but it doesn't automatically tell you how comfortably you will work in the field.
For a feeding station, a wide field of view is often more important than 2,000 m range. For field hunting, it's the other way around: more focal length and more sensor resolution provide significantly more reserves.
Thermal + Optics: How to Use Multi-Spectrum Correctly
-
Thermal image: fastest method for finding heat sources – especially in darkness, vegetation, and unclear terrain.
-
Digital/optical channel: better visible details when light or IR support is sufficiently available.
-
LRF: particularly important because distances in thermal images often appear shorter or longer than they are.
Practical Tip: Order of Use
First scan thermally, then classify optically, then measure distance. Anyone who immediately works in digital zoom often loses overview and time.
Operation in Real Use
-
First overview, then zoom: Start with basic magnification. Only use digital zoom when the target has already been found.
-
Focus consciously: Poor focus appears like poor sensor performance. Especially with 35, 50, or 60 mm optics, clean focusing is crucial.
-
Don't overvalue palettes: White Hot/Black Hot are usually the working modes. Color palettes help situationally, but do not replace clean image settings.
-
Plan for weather: Humid air, drizzle, fog, and warm ground reduce contrasts. Then NETD and image processing are particularly important.
-
Plan batteries realistically: Cold, display brightness, WLAN, recording, and LRF shorten runtimes. Spare batteries or a power bank are essential for longer nights.
Important note:
Ranges, runtimes, NETD values, and detection specifications are manufacturer's data and depend in practice on weather, target size, humidity, temperature contrast, settings, and stability.
For clip-on, attachment, or hunting use, legal requirements, mounting, adapters, point of impact, and safe use must always be checked before use.
Technical Data
-
Model: Hikmicro Gryphon GQ50L
-
Product Type: Multi-Spectrum Monocular
-
Sensor: 640x512
-
Thermal Sensitivity: <35 mK
-
Lens/Focal Length: 50 mm F1.0
-
Detection/Acquisition Range: up to approx. 2600 m according to manufacturer
-
Laser Rangefinder: up to approx. 600 m according to manufacturer
-
Display: 1024x768
-
Weight: approx. 548 g
-
Runtime: up to approx. 4.5 h according to manufacturer
FAQ
Is this model more suitable for feeding stations or field hunting?
Field hunting and long distances, when thermal imaging, digital imaging, and LRF are to be in one device. Sensor resolution and focal length are particularly crucial: short focal lengths provide an overview, long focal lengths bring detail at a distance.
What does sensor resolution mean in practice?
640x512 is the class where thermal imaging becomes significantly more relaxed: more pixels on game, more structure in the background, and more reserves for digital magnification. Particularly useful for field hunting, larger clearings, wide meadows, and users who not only want to detect but also accurately classify.
Why is focal length so important?
50 mm is clearly designed for distance. This provides more detailed depth over a wide area, but is less comfortable for very narrow forest situations. Ideal for field hunting, large meadows, wide clearings, and territories with long lines of sight.
What does NETD mean?
NETD around 35 mK is solid, but not high-end. With clear temperature differences, it works reliably; in humid, warm weather or very low contrasts, more sensitive devices have visibly more reserves.
When is a larger device still not better?
If you work in dense forest, at a feeding station, or at short distances, a wide field of view can be more important than maximum range. A large lens is strong at a distance, but not automatically more comfortable in close range.
Especially with thermal imaging technology, it's not the highest numerical value that decides, but the right combination of sensor resolution, focal length, NETD, field of view, and real-world application profile.
