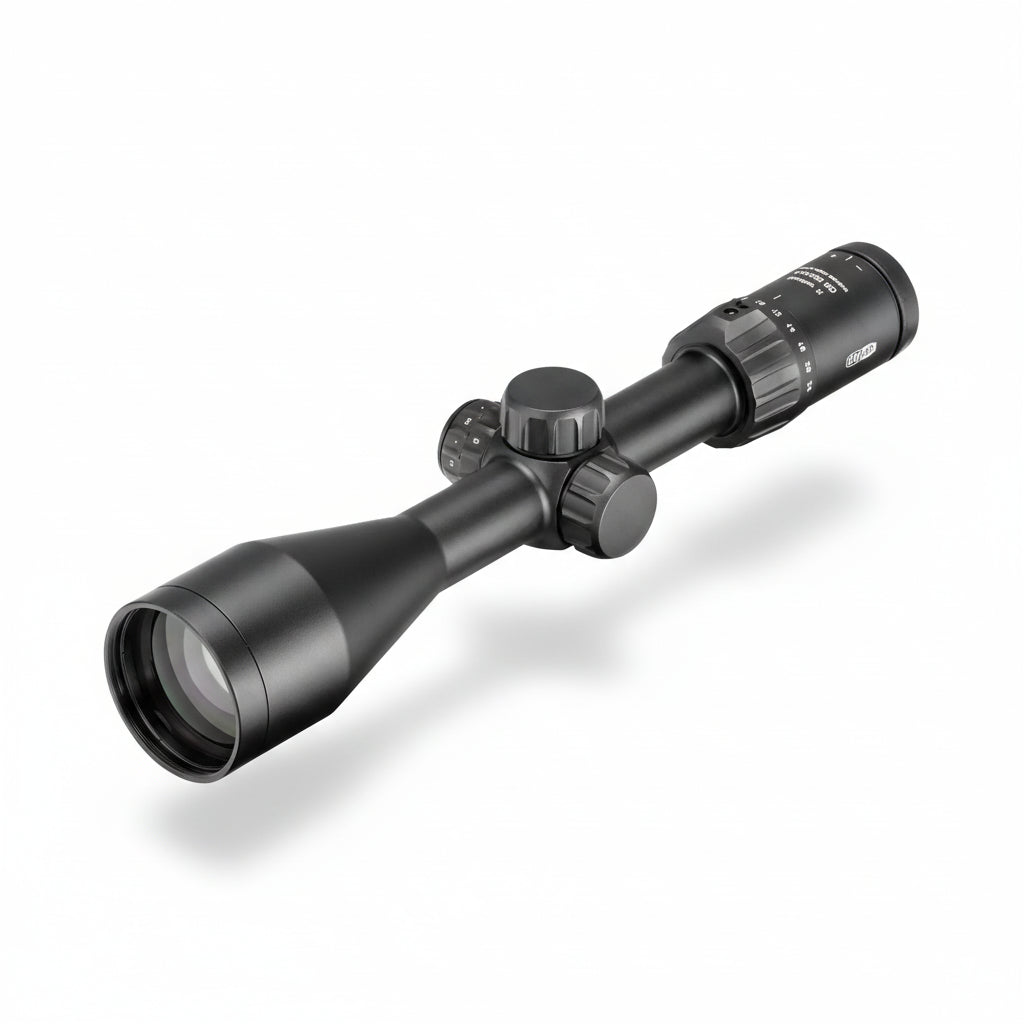

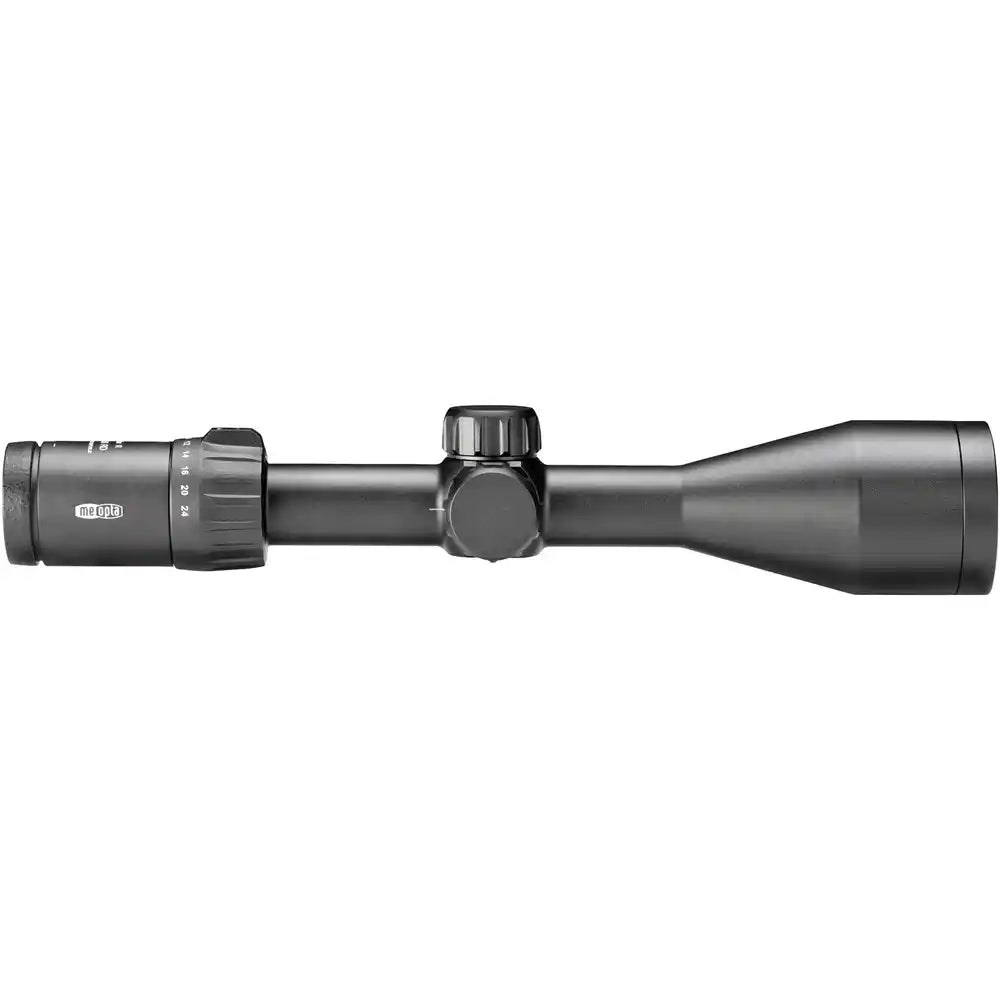

Meopta Meostar R 4-24x56 RD PA – Twilight and Long-Range Scope with 56mm Reserve
If you want to shoot accurately, your scope must match the situation.
The Meopta Meostar R 4-24x56 RD PA is not just any rifle scope, but a deliberately designed solution for stand hunting, field hunting, shooting range, and controlled long-range work. What is crucial is not just the magnification – but how the image, reticle, parallax, and point of impact work together in real use.
With 4–24x, a 56mm objective lens, and a 2nd focal plane (SFP), this scope is designed for twilight reserve and precise adjustments at medium to long distances – with traceable mechanics, clear reticle logic, and precise point of impact control.
Why exactly this product?
✔ 4–24x magnification range – useful for twilight reserve and precise adjustments at medium to long distances
✔ 56 mm objective lens – plenty of light reserve at high magnification and dusk
✔ 2nd focal plane (SFP) – SFP means: the reticle remains optically the same size; holdover marks must be used at the intended reference magnification
✔ Click logic: One click shifts the point of impact by approx. 0.7 cm at 100 m, 1.4 cm at 200 m, and 2.1 cm at 300 m
✔ Meopta-typical robust, nitrogen-filled, and weather-resistant construction
✔ Side parallax adjustment from approx. 20 m
✔ 8-stage illuminated reticle
Why MeoStar R 4-24x56 RD PA?
This model is useful if you don't just want the largest possible scope, but a rifle scope that cleanly covers your actual shooting range.
- You get a clear classification of distances instead of mere datasheet values
- You can deliberately choose your reticle to suit the application
- You immediately understand what a click practically does when zeroing
- You get optics that combine hunting practice and controlled training
- You avoid bad purchases because magnification, objective lens size, and focal plane match the application
The difference to a wrongly chosen rifle scope:
❌ Too much magnification: narrow field of view, slow aiming, unnecessary weight
❌ Too small objective lens: less reserve at dusk and high magnification
✔ MeoStar R 4-24x56 RD PA: Twilight reserve and precise adjustments at medium to long distances with suitable optical and mechanical reserve
This exact difference isn't apparent in the store – but when zeroing, at dusk, and under time pressure.
Practical Tip: Document Zero, Clicks, and Point of Impact Cleanly
One click shifts the point of impact by approx. 0.7 cm at 100 m, 1.4 cm at 200 m, and 2.1 cm at 300 m. After zeroing, always write down: ammunition, zeroing distance, approximate temperature, click position, and magnification used.
This way, you'll immediately recognize later whether a deviation is due to ammunition, mounting, parallax, shooting stance, or really the scope.
Key Features
- Magnification range: 4–24x
- Objective diameter: 56 mm
- Main tube: 30 mm

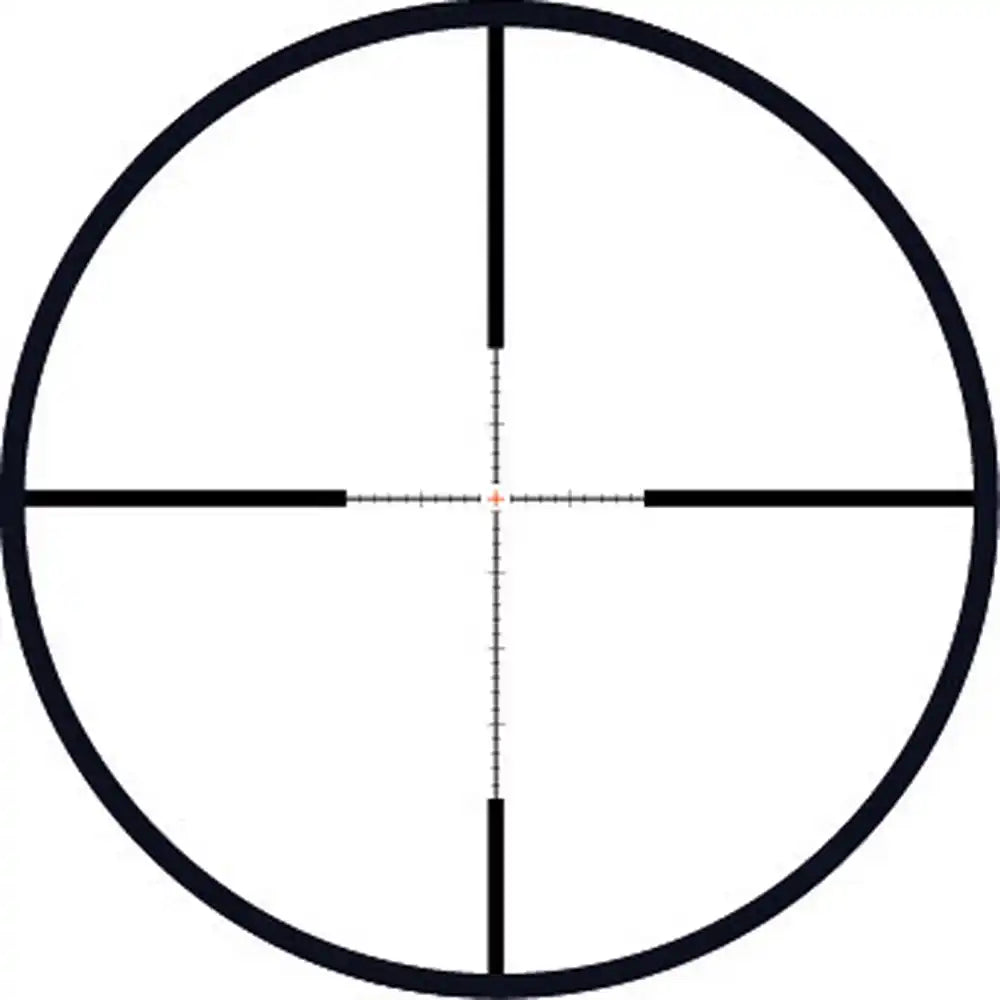

- Reticle: MOA-MR illuminated reticle
- Reticle plane: 2nd focal plane (SFP)
- Click adjustment: 0.7 cm / 100 m (1/4 MOA)
- Parallax: side, approx. 20 m to ∞
- Robust, weather-resistant construction for hunting and training
- Useful with clean mounting and controlled zeroing
- Side parallax adjustment from approx. 20 m
- 8-stage illuminated reticle
- MeoLux / MeoDrop coating
Our Assessment
The MeoStar R 4-24x56 RD PA demonstrates its strength where twilight reserve and precise adjustments at medium to long distances are required. It is not a random all-purpose scope, but must be deliberately matched to the weapon, mounting, ammunition, and hunting ground.
The combination of 4–24x and 56 mm is crucial in practice: the lower magnification is about overview and speed, the higher magnification about target assessment, control, and precise work.
SFP means: the reticle remains optically the same size; holdover marks must be used at the intended reference magnification. This exact reticle logic determines whether you are just aiming – or truly using holdovers, corrections, and distances cleanly.
Suitable for
-
Hunters: if your hunting ground requires stand hunting, field hunting, shooting range, and controlled long-range work
-
Sport shooters: if you want to use point of impact, clicks, and reticle reproducibly
-
Stand / Field / Range: if you need more control than with a pure all-round scope
-
Users with attachment or accessory planning: if mounting height, overall length, and parallax need to be considered
Why exactly for you?
If you want to know why your shot hits or misses, you need a scope that works predictably. This model gives you exactly this technical basis – provided mounting, zero, and shooting technique are correct.
You can also find suitable optics, mounts, and accessories in our Outdoor & Emergency Preparedness category.
Important Note:
Rifle scopes improve target acquisition and precision, but do not replace safe weapon handling, clean shooting technique, or legal review of the intended use.
Before hunting use, always check mounting, point of impact, and ammunition used.
Magnification & Objective Lens – What does it practically offer?
4–24x does not automatically mean "better," but describes your usable working range. The low magnification determines the field of view and speed, the high magnification determines target control and precision.
The 56 mm objective lens is primarily relevant for light reserve and image stability. The higher you magnify, the smaller the exit pupil becomes – which is why a suitable objective lens size is particularly important at dusk and high magnification.
- Low magnification: faster acquisition, more peripheral vision
- High magnification: control bullet impact, assess target more cleanly
- 56 mm: more reserve in poor light and higher magnification
- Always check at the range at which magnification you truly shoot stably
Reticle & Focal Plane – Using it Correctly
This model uses a 2nd focal plane (SFP). SFP means: the reticle remains optically the same size; holdover marks must be used at the intended reference magnification.
Important: A reticle is only an advantage if you know at which magnification or in which plane your holdover marks are correct.
- Deliberately choose MOA-MR illuminated reticle according to application
- 4C/Z-Plex: fast, clean, intuitively suitable for hunting
- BDC/MRAD/MilDot: useful if you actively use distances, holdovers, and ballistics
- Do not set the illuminated reticle too bright – otherwise the aiming point will overexpose at dusk
Clicks, Zero & Point of Impact
One click shifts the point of impact by approx. 0.7 cm at 100 m, 1.4 cm at 200 m, and 2.1 cm at 300 m. This is extremely important when zeroing, because you don't have to guess, but can calculate the correction cleanly.
After every mounting change, every ring change, or ammunition change, a control group belongs on the range. Especially with hunting optics, trust in the point of impact is more important than any advertising claim.
- Zero cleanly at a defined distance
- Document click position after zeroing
- Shoot a control group after mounting work
- Consciously adjust parallax at high magnification
- Never use only a single hit as a reference
Features & Construction / Contents
- A rifle scope of this class thrives on clean mounting, correct torque, and stress-free ring position
- Nitrogen filling and weather-resistant construction support use in rain, cold, and temperature changes
- Coated lenses reduce disturbing influences from water, dirt, and reflections
- Technical performance only becomes visible when ammunition, mounting, and shooter work reproducibly
Technical Data
- Magnification: 4–24x
- Zoom factor: 6x
- Objective diameter: 56 mm
- Main tube diameter: 30 mm
- Length: 360 mm
- Weight: 860 g
- Field of view at 100 m: 9.2 – 1.4 m
- Click adjustment: 0.7 cm / 100 m (1/4 MOA)
- Parallax: 20 m – ∞
- Battery: CR2354
- Eye relief: 95 – 98 mm
Scope of Delivery
- Meopta MeoStar R 4-24x56 RD PA
- Battery
- Protective caps
- User manual
FAQ
For what distance is this scope suitable?
That depends on the hunting ground, weapon, and ammunition. The 4–24x magnification range makes it particularly suitable for twilight reserve and precise adjustments at medium to long distances; however, a clean zero and realistically trained distances remain crucial.
What does click adjustment mean in practice?
One click shifts the point of impact by approx. 0.7 cm at 100 m, 1.4 cm at 200 m, and 2.1 cm at 300 m. This allows you to precisely correct point of impact deviations when zeroing, instead of adjusting by feel.
Is high magnification always better?
No. High magnification shows more details, but makes aiming errors, mirage, and parallax errors more visible. In practice, the highest magnification is not automatically the best shooting magnification.
When do I need parallax adjustment?
As soon as you work with higher magnification or at varying distances. Incorrectly set parallax can cause point of impact errors, even though the reticle and target seem to align cleanly.
What should I check after mounting?
Ring mounting, eye relief, horizontal alignment, torques, parallax, zero, and a control group with the ammunition actually used.
Especially in the area of Meopta rifle scopes, hunting optics, and precise point of impact, it is not a single data value that decides, but the interplay of magnification, objective lens, reticle, zero, and reproducible mounting.
