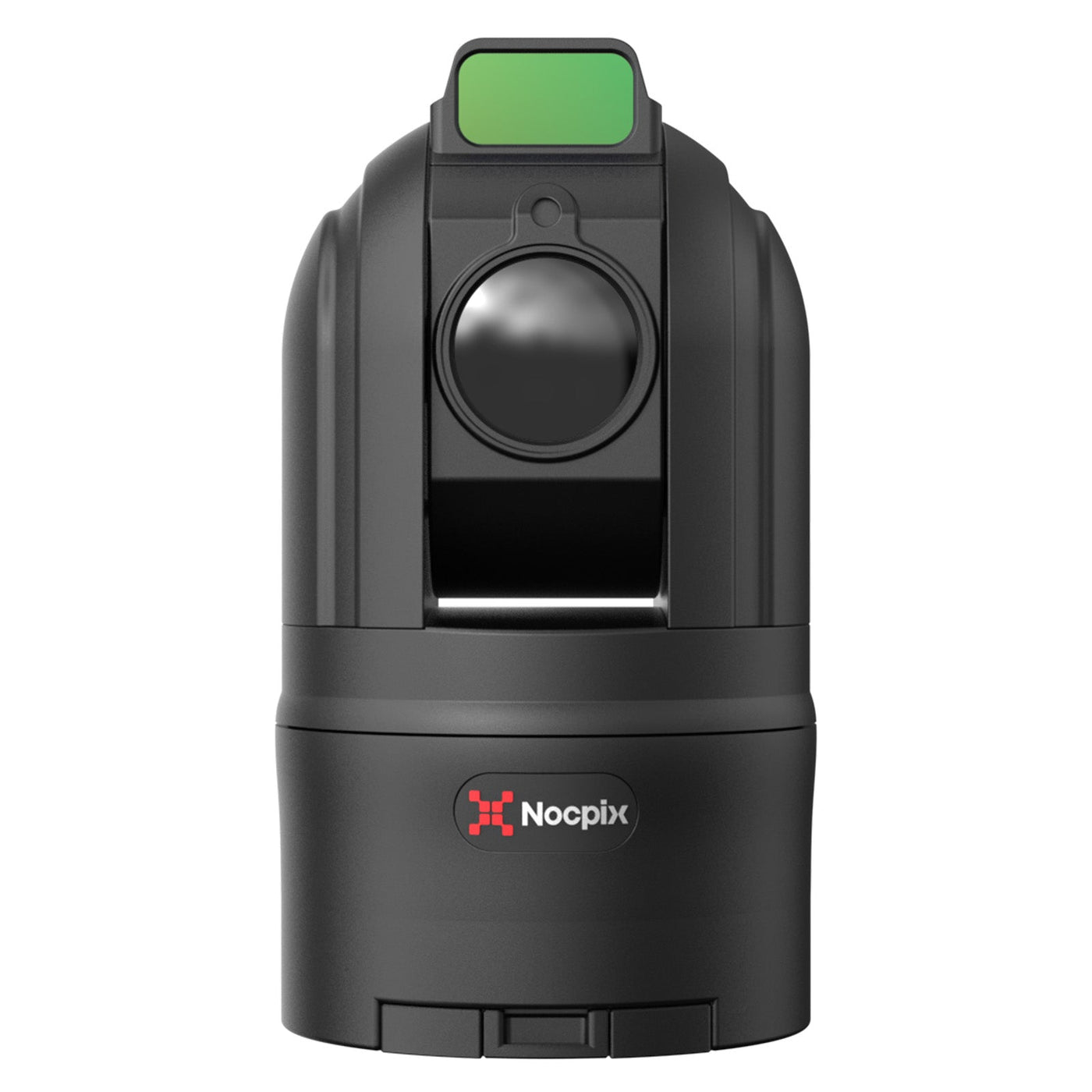

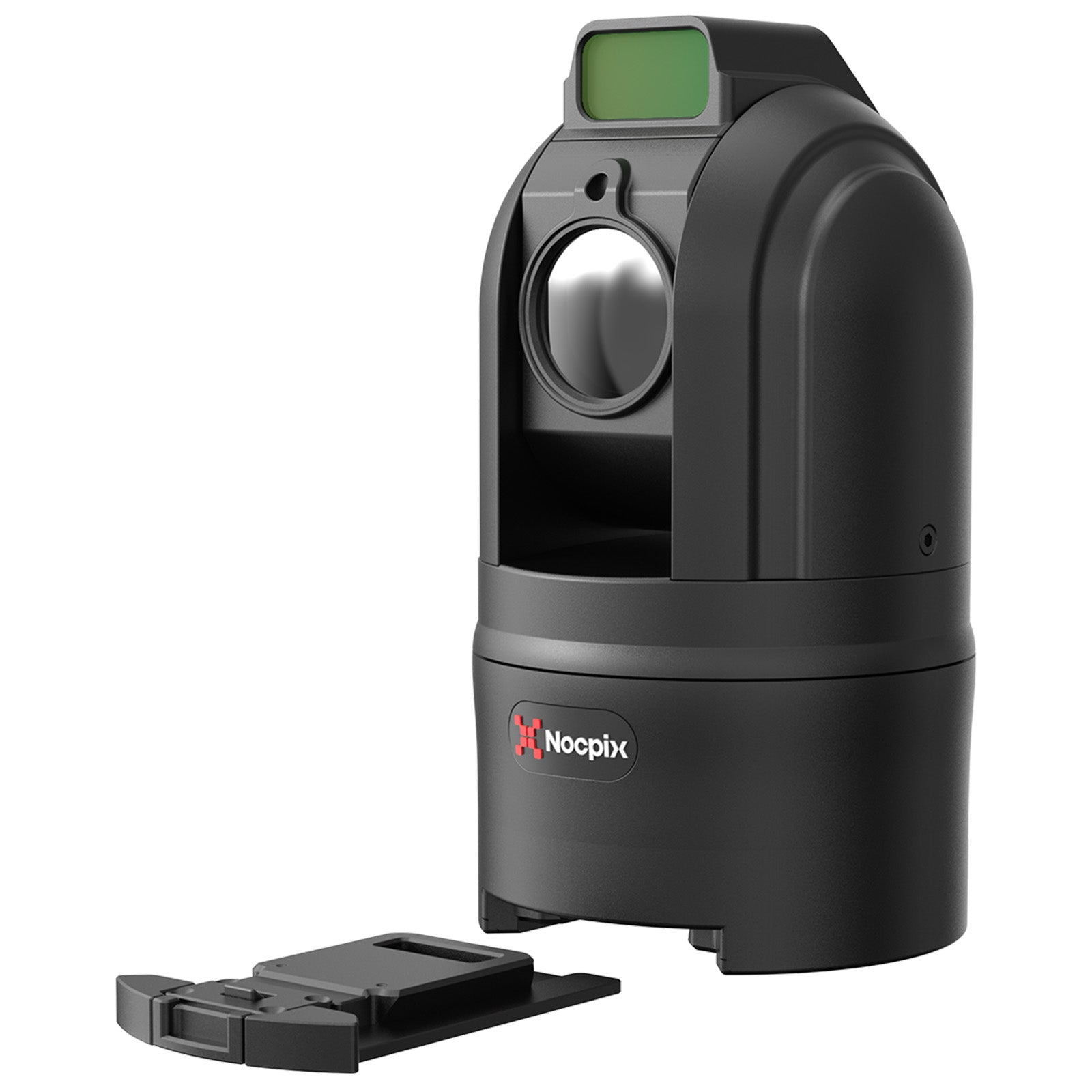

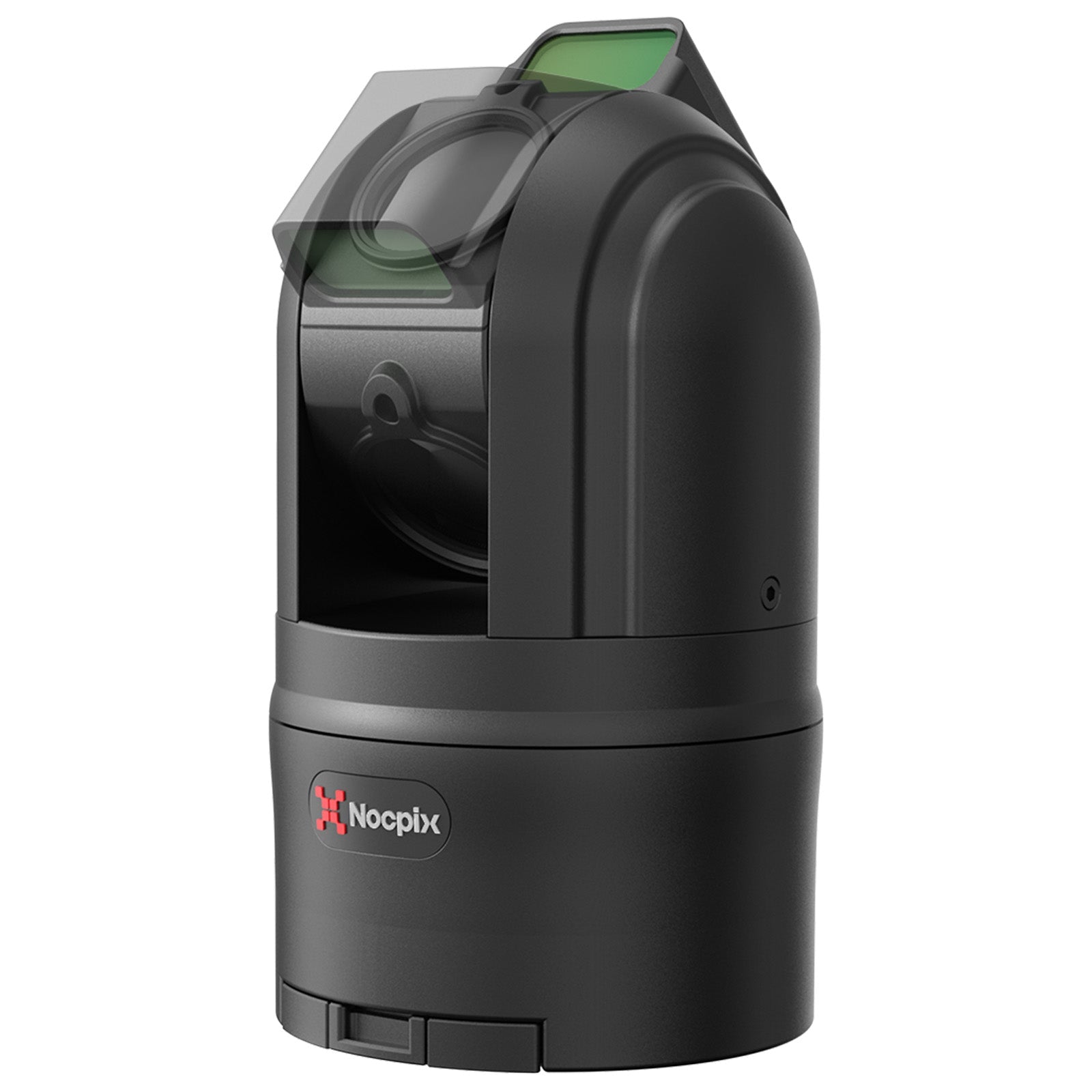

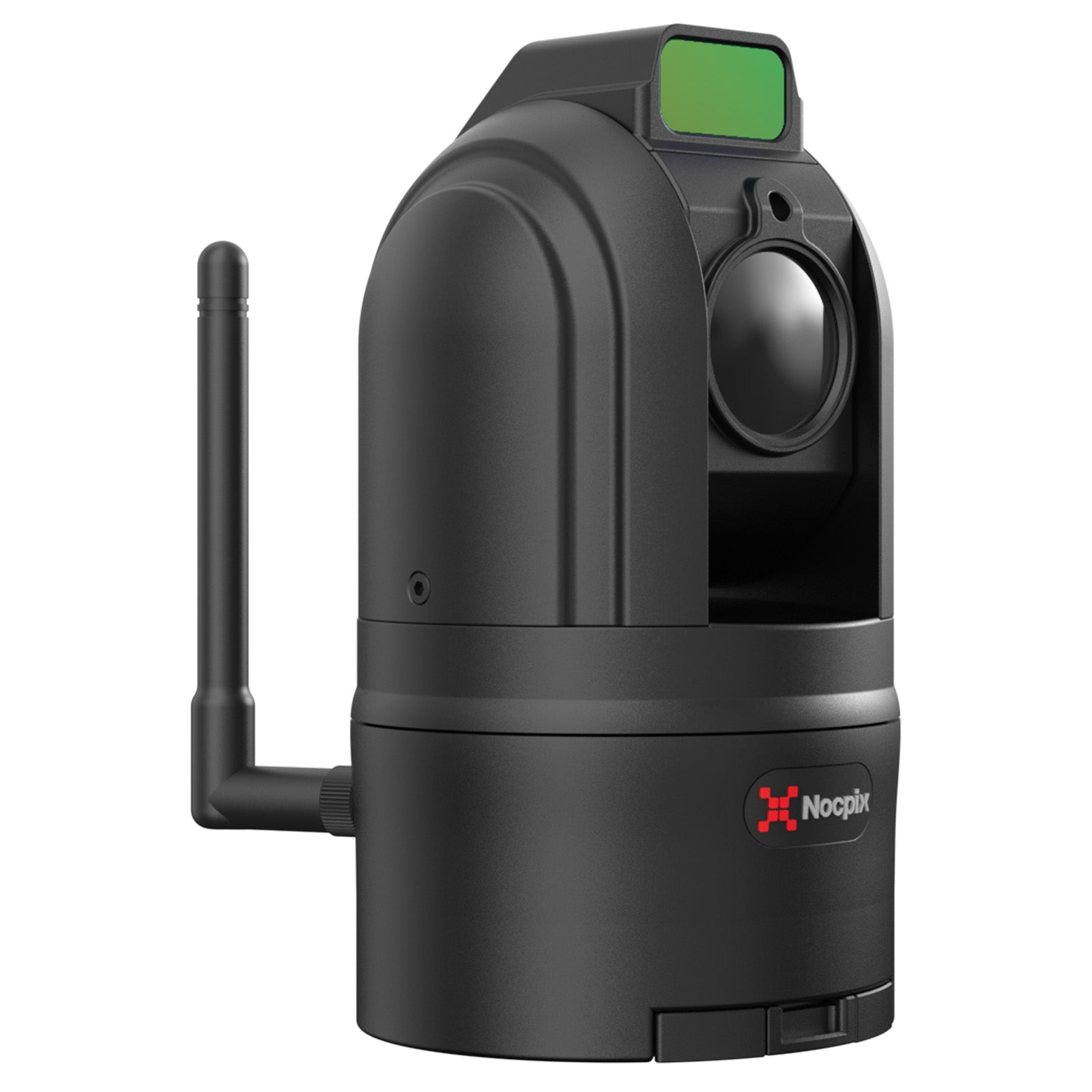

Nocpix Dome – 360° Thermal Imaging Dome Camera for Large-Area Wildlife Surveillance and Tracking
A dome camera is not a handheld device – it is a search system.
The Nocpix Dome is a 360° thermal camera for mobile or stationary observation. It combines a 640×512 sensor, 25mm F1.0 optics, 360° rotation, 90° tilt, AI detection, 2-axis stabilization, and a 1200m LRF.
The system is designed for users who want to monitor large areas permanently or from a vehicle. Instead of manually scanning with a monocular, the dome camera takes over the searching, marking, and tracking.
Why this thermal imaging device?
✔ 640×512 / 12 µm sensor – good detail base for automatic detection
✔ 25 mm F1.0 lens – wide field of view for search and tracking tasks
✔ NETD ≤15 mK – fine temperature separation for AI-assisted search
✔ 50 Hz refresh rate – fluid display during pans
✔ LRF up to 1200 m for distance control
✔ 360° search and tracking system
Why the Nocpix Dome M6T25S?
The Dome makes sense if you don't just want to look at specific points, but actively monitor an area and track movements.
- 360° all-round view instead of manual panning
- AI-assisted detection and target marking
- 2-axis stabilization during movement
- App and connection options for live image
- LRF up to 1200 m for distance data
Technology clearly explained:
Sensor resolution: 640×512 is strong enough to clearly display game and heat sources in a search system.
Lens: 25 mm is deliberately chosen wider because dome systems prioritize search field over maximum focal length.
Field of view: Approx. 30.7 m at 100 m supports large-area scanning and automatic tracking.
Wildlife Scenario:
You observe large areas from your vehicle or a fixed point. Instead of repeatedly searching the same sectors with a handheld device, you let the system scan and mark movements.
Key Features
- 360° rotating thermal imaging system
- 640×512 sensor with 12 µm pixel pitch
- 25 mm F1.0 lens
- NETD ≤15 mK
- 50 Hz refresh rate
- 2-axis stabilization
- AI detection with YOLO-V5 model according to manufacturer
- 1200m LRF
- App support
- WLAN and wired connection
- Brushless silent motor
- Operating time up to approx. 7 hours according to manufacturer
Our Assessment
The Nocpix Dome is a specialized device. It is not designed for a quick glance out of your pocket, but for systematic observation.
Its big advantage lies in its all-round view, tracking, and stabilization. Especially in a vehicle or at fixed points, this is a different way of working than with a monocular.
For classic stalking or stand hunting in a compact form, a handheld device is more suitable. The Dome is worthwhile if you really use the overview, automation, and live image.
Instructor Tip: Using thermal imaging correctly
Don't blindly trust dome systems: AI markings help, but do not replace your own assessment. Set up search zones sensibly and regularly check whether vegetation, vehicle movement, or background heat cause misinterpretations.
Thermal imaging helps with finding, observing, and classifying. It does not replace responsible decision-making – especially not in poor visibility, vegetation, or unclear situations.
Who is it suitable for?
-
Vehicle-based observation: if stabilized searching is required during movement
-
Large hunting grounds: if all-round visibility is more important than handheld device comfort
-
Stationary surveillance: if an area is to be continuously monitored
-
Professional users: if tracking, live image, and system integration are used
Why exactly for you?
If you want to use thermal imaging not just as a handheld scanner, but as an active search and tracking system, the Nocpix Dome is the right category.
Important note:
Detection ranges describe the detection of heat sources under defined conditions. Safe hunting identification occurs significantly closer and depends on weather, vegetation, experience, and situation.
The use of thermal imaging technology may be legally regulated. Please check the applicable regulations as well as technical and safety-related requirements before mounting and use.
Practice: Sensor, Lens and Application Area
- 25 mm = wide field of view for 360° systems
- 640 sensor = good detail base
- AI tracking = support, not automatic decision
- 2-axis stabilization = particularly relevant for vehicle use
Features & Construction
- 360° horizontally rotating system
- 90° tilt range
- Brushless motor
- 2-axis stabilization
- App and cable connection
- Robust housing with IP56 according to available product data
Technical Data
- Model: Nocpix Dome M6T25S
- Product type: Thermal imaging dome camera / tracking system
- Sensor: 640×512 / 12 µm
- NETD: ≤15 mK
- Lens: 25 mm F1.0
- Refresh rate: 50 Hz
- Field of view: approx. 30.7×24.6 m at 100 m
- Magnification: 1× / 2× / 4× digital
- Display: Live image via app / external display depending on setup
- Detection range: up to approx. 1300 m according to official Nocpix MT specification
- Laser rangefinder: 1200 m
- Protection class: IP56 according to available product data
- Operating time: up to approx. 7 hours
- Weight: approx. 890 g according to available product data
Scope of Delivery
- 1x Nocpix Dome thermal camera
- Mounting and connecting cables
- Power supply / charging cable
- User manual
FAQ
Is the Dome a handheld device?
No. It is a 360° search and tracking system for mobile or stationary use.
What does AI detection do?
It can mark heat sources and facilitate tracking, but it does not replace user assessment.
Why a 25 mm lens?
For a dome system, overview is more important than maximum focal length.
Can it be used in a vehicle?
Yes, that's exactly where stabilization and all-round visibility show their strengths.
When is a monocular better?
If you want to be light, fast, and without system setup.
Especially with a thermal imaging dome camera, the combination of 360° coverage, AI detection, stabilization, and correct search zone usage determines the real added value.
