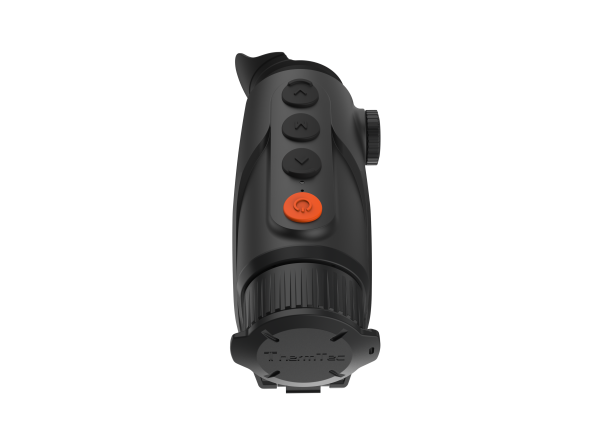

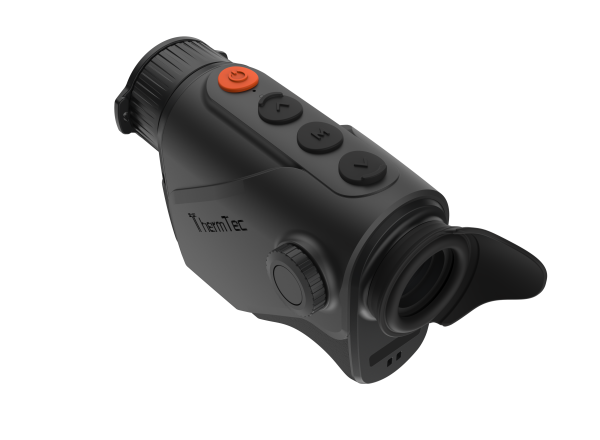

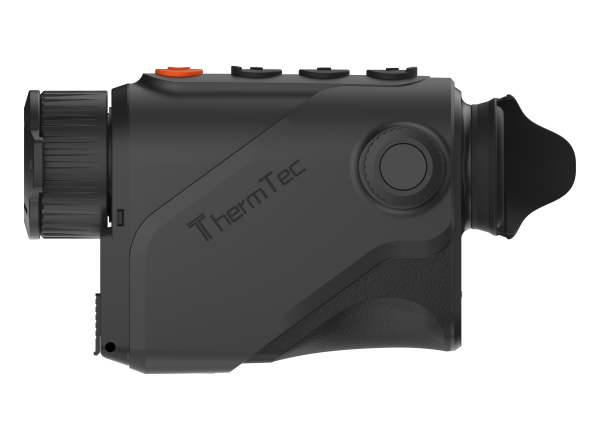

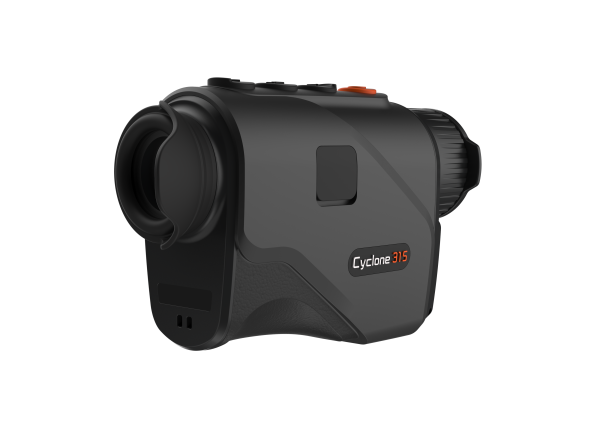

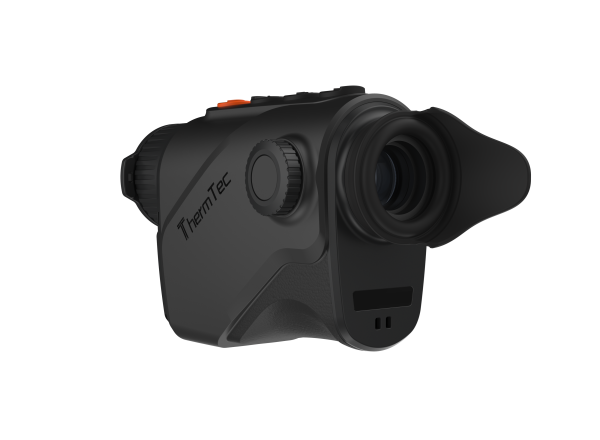

Thermtec Cyclone 315 – Compact Thermal Imaging Monocular

Thermtec Cyclone 315 – Key Features at a Glance

• Thermal imaging monocular with 15mm objective lens and compact design
• VOx sensor with 384 × 288 pixels and 12 µm pixel pitch
• Manufacturer's specification: System performance < 20 mK NETD
• AMOLED display with 1024 × 768 pixels
• Interchangeable battery system (18650) with approx. 10 h runtime per battery
• 32 GB internal memory for photo and video recordings
• AI object recognition and AI rangefinding according to manufacturer
• Hotspot/WLAN for connection with mobile devices
• 6 color palettes and extensive image settings
• Protection class IP67
• Very low weight of approx. 250 g

Personal assessment from a customer's perspective:
For me, the Cyclone 315 is one of the most pleasant devices when it comes to truly lightweight and compact observation. In hand, it feels stable, yet so light that you can use it for extended periods without problems. The display shows a clear image, especially when adjusting sharpness, contrast, or backlight. I find the interchangeable battery system practical, as it allows you to easily get through longer nights without a fixed power source. The menu navigation seems logical, and the hotspot function allows recordings to be quickly transferred to a smartphone. For short to medium distances, I find the device very pleasant to use.

Technical Specifications

• Model: Thermtec Cyclone 315
• Lens diameter: 15 mm
• Lens system: F1.0
• Sensor resolution: 384 × 288 pixels (VOx)
• Pixel size: 12 µm
• NETD system performance: < 20 mK (manufacturer's specification)
• Frame rate: 50 Hz
• Display: AMOLED, 1024 × 768 pixels
• Field of view: approx. 17.5° × 13.1°
• Field of view width at 100 m: approx. 30.7 m
• Optical magnification: 1.4×
• Digital zoom: 1×, 2×, 4×
• Detection distance human: approx. 750 m (manufacturer's specification)
• Recognition distance human: approx. 275 m (manufacturer's specification)
• Color palettes: 6
• Target outline mode: present
• PIP function: Yes
• Recording function: Photo & Video
• Internal memory: 32 GB
• WLAN hotspot: Yes
• AI rangefinder and AI object recognition: Yes
• Battery life: approx. 10 h per battery (manufacturer's specification)
• External power supply: USB (5 V)
• Protection class: IP67
• Operating temperature: –20 °C to +50 °C
• Dimensions: approx. 139 × 76 × 54 mm
• Weight: approx. 250 g
• Tripod thread: 1/4"

Areas of Application

• Observation of wildlife at short to medium distances
• Use in forests or dense vegetation
• Mobile outdoor activities where low weight is important
• Documentation via photo and video recordings
• Observation in combination with a smartphone app

Advantages from a User's Perspective

• Very lightweight and compact device for long-term use without fatigue
• Clear AMOLED display with good detail recognition
• Interchangeable battery system for flexible use over many hours
• Easy to operate, even for occasional users
• 32 GB of memory is sufficient for many recordings
• Hotspot function facilitates transfer to mobile devices
• IP67 protection class for outdoor use

Scope of Delivery

• Thermtec Cyclone 315 thermal imager
• Lens cover
• USB charging/data cable
• Charger
• 2 × 18650 batteries
• Lens cloth
• German user manual

FAQ

• How large is the device in practical use?
  The Cyclone 315 is one of the most compact thermal imaging devices and can be easily operated with one hand.
• How long does the battery last?
  According to the manufacturer, up to approx. 10 hours per battery, depending on temperature and use.
• Can recordings be saved?
  Yes, the device has an internal 32 GB memory.
• Is a connection to a smartphone possible?
  Image and video can be transferred or the device can be controlled via the hotspot.
• For what distances is the device suitable?
  For short to medium observation ranges, e.g., in forests or during stalking.
