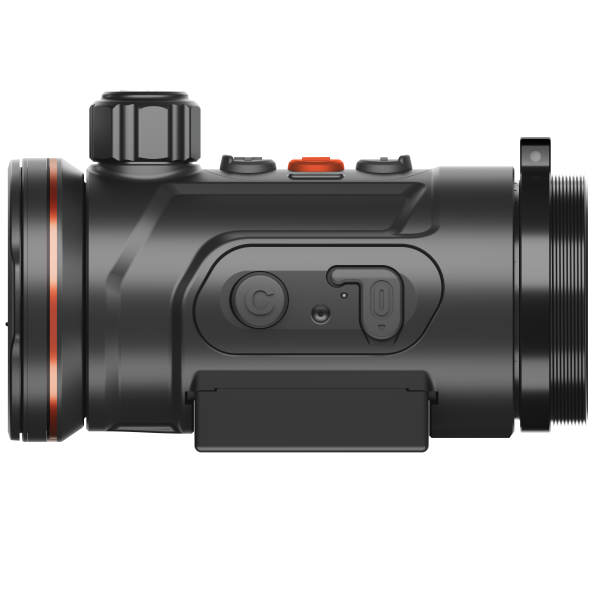

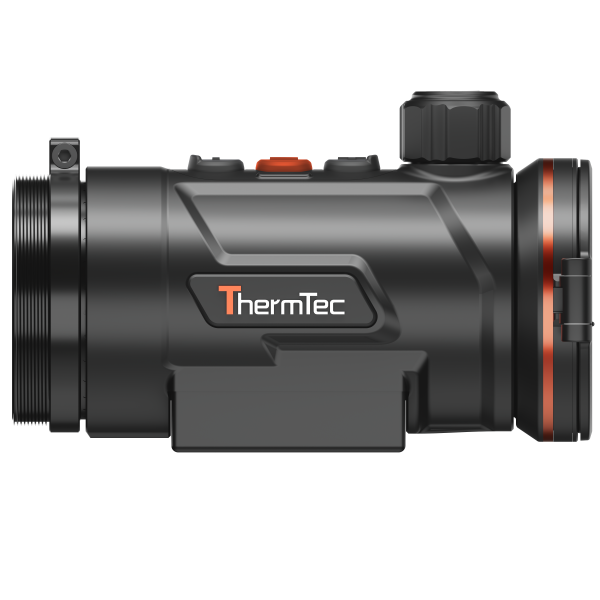

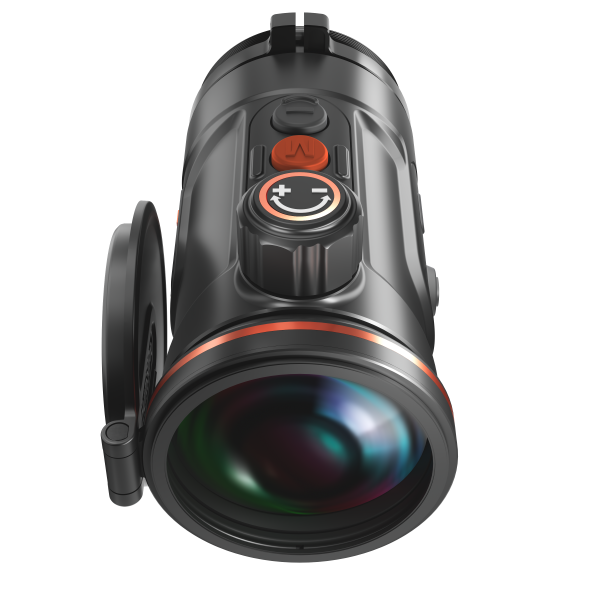

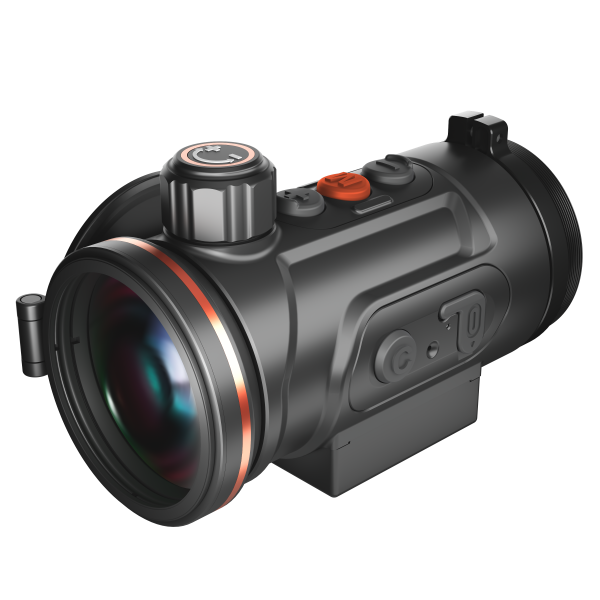

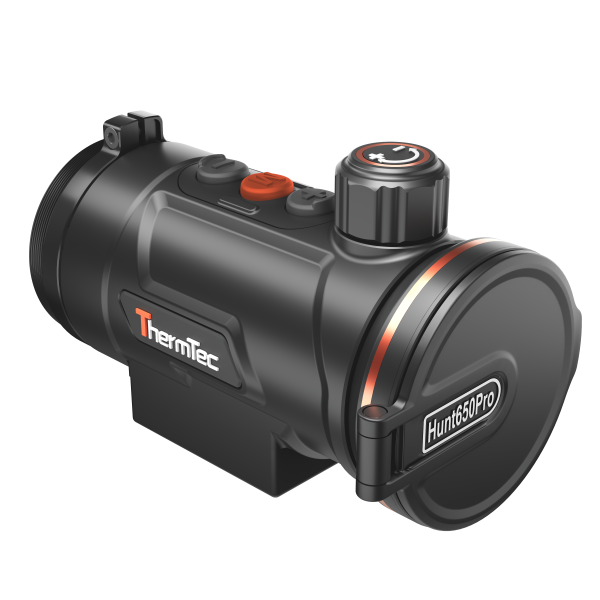

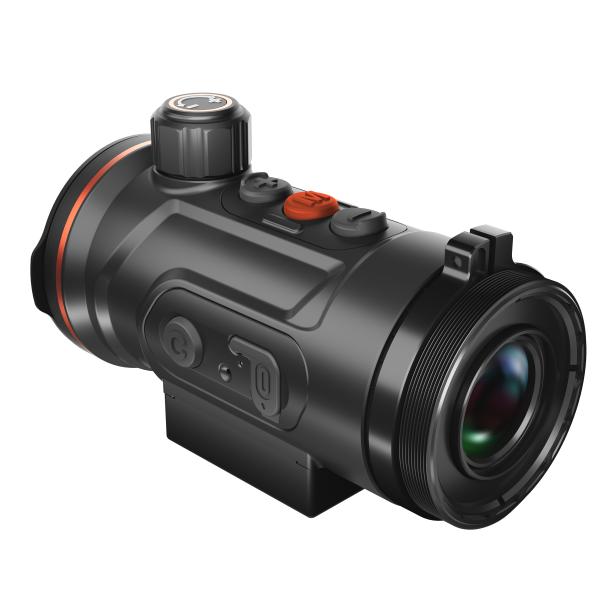

The ThermTec Hunt 650 Pro is a thermal imaging clip-on device designed for seamless interaction with your daytime optics: a highly sensitive 640×512 sensor with NETD < 15 mK (manufacturer's specification), 50 mm optics with F1.0 (manufacturer's specification), and an HD-OLED with 1920×1080 and 4.5 µm pixel density (manufacturer's specification). Additionally, it features a replaceable battery, fast startup time, and functions like RAV recording – all in a compact housing weighing just 399 g (manufacturer's specification).
Key Features
- Sensor: 640 × 512, Pixel Pitch 12 µm, NETD < 15 mK (manufacturer's specification)
- Optics: 50 mm, Aperture F1.0, manual focusing (manufacturer's specification)
- Field of view: 8.8° × 7.0° / 15.4 m field of view width at 100 m (manufacturer's specification)
- Display: HD-OLED 1920 × 1080, Pixel Density 4.5 µm (manufacturer's specification)
- Click adjustment: 1.3 cm at 100 m per click (manufacturer's specification)
- Magnification: optical 2.8× (manufacturer's specification); digital up to 16× (manufacturer's specification)
- Monocular mode: clip-on device usable as a handheld device by pressing a button (manufacturer's specification)
- RAV: automatic recording 11 s before/after recoil + reticle in recordings (manufacturer's specification)
- Battery: replaceable battery, runtime ≥ 6 h at 25 °C; with second battery up to 12 h (manufacturer's specification)
- WLAN/Hotspot: Live image/transmission possible (manufacturer's specification)
- Storage: 64 GB internal (manufacturer's specification)
- Protection class: IP67 (manufacturer's specification)
- Weight/Size: 399 g, 124 × 70 × 77 mm (manufacturer's specification)
- Adapter mount: M52×0.75 (manufacturer's specification)
Our Assessment – From the Perspective of Instructors & Users
For clip-on devices, ultimately, it's not the feature list that matters, but whether the setup works reproducibly: clear display, clean operation, reliable adjustment. The Hunt 650 Pro is strong if you are looking for a compact device that focuses on detail and fine-tuning. The very low NETD value helps especially when game and surroundings have little temperature difference (mild nights, high humidity) – here, a good system appears less "flat" and you recognize structures more quickly.
Practical Added Value: The click adjustment is a real practical lever. 1.3 cm at 100 m means you can finely correct points of impact without working in large increments. Converted, this is 13 mm at 100 m, 6.5 mm at 50 m, and 26 mm at 200 m. This is particularly helpful if you want to accurately track setup changes (adapter, mounting position, daytime optics). A typical mistake is to mount an attachment "somehow" and then judge the image quality: For attachments, clean alignment, correct focus, and smooth handling of image parameters are crucial.
It is oversized if you use the attachment rarely or if a simpler device without RAV/monocular mode is sufficient. It is useful if you want to stay compact but value high image sharpness, fine adjustment, and a replaceable battery.
Features & Operation
-
UI Scaling: Menu/overlay can be adjusted to the base magnification of your daytime optics (manufacturer's specification)
-
Monocular Mode: Usable as a handheld device at the push of a button (manufacturer's specification)
-
RAV Recording: Automatic sequence before/after recoil + playback directly on the device (manufacturer's specification)
-
Reticle: Integratable into video/RAV, multiple reticles available (manufacturer's specification)
-
Image Profiles: Extensive setting options, target outline mode, 6 palettes (manufacturer's specification)
-
Bluetooth Ring Remote Control: Comfortable operation, incl. charging cradle (manufacturer's specification)
-
Weapon Profiles: 4 profiles storable (manufacturer's specification)
Technical Data
- Model: ThermTec Hunt 650 Pro
- Sensor: 640 × 512, 12 µm, NETD < 15 mK (manufacturer's specification)
- Frame Rate: 50 Hz (manufacturer's specification)
- Optics: 50 mm, F1.0, manual focusing (manufacturer's specification)
- Field of View (°): 8.8 × 7.0; Field of View Width at 100 m: 15.4 m (manufacturer's specification)
- Display: OLED 1920 × 1080; Pixel Density 4.5 µm (manufacturer's specification)
- Optical Magnification: 2.8× (manufacturer's specification)
- Color Palettes: 6 (manufacturer's specification)
- Detection/Recognition Distance (Human): 2,600 / 870 m (manufacturer's specification)
- Storage: 64 GB; Photo/Video/Live Image Transmission: yes (manufacturer's specification)
- RAV Function with Reticle: yes; Playback on Device: yes (manufacturer's specification)
- Protection Class: IP67; Operating Temperature: −20 °C to +50 °C (manufacturer's specification)
- Weight: 399 g; Dimensions: 124 × 70 × 77 mm (manufacturer's specification)
- Adapter Mount: M52×0.75 (manufacturer's specification)
- Recoil Resistance: 6,000 Joules (manufacturer's specification)
- Power Supply: USB 5 V; WLAN Hotspot: yes (manufacturer's specification)
- Battery: Replaceable battery; Runtime ≥ 6 h at 25 °C (manufacturer's specification)
Scope of Delivery
- 1× ThermTec Hunt 650 Pro Clip-On Device
- 2× Battery
- 1× Charger
- 1× USB-C Charging Cable
- 1× Ring Remote Control incl. Charging Cradle
- 1× Locknut with Fixing Screw
- 1× Bag
- 1× Cleaning Cloth
- 1× German User Manual
Note: Specifications for ranges, NETD, recoil resistance, and runtimes are manufacturer's specifications and may vary depending on weather, temperature contrast, mounting/alignment, display brightness, and usage (WLAN/RAV). Please check before purchasing whether your adapter/mount fits the M52×0.75 interface and whether the setup can be professionally mounted.
FAQ
What does 1.3 cm click adjustment at 100 m mean in practice?
One click corresponds to 13 mm at 100 m. That's 6.5 mm at 50 m and 26 mm at 200 m. This allows you to make very fine corrections to points of impact, instead of working in large increments (manufacturer's specification).
What is the UI scaling useful for?
It adapts the display/size of the user interface to the base magnification of your daytime optics. This helps if you use different optics and don't want the overlay to appear "too large" or "too small" (manufacturer's specification).
How useful is the monocular mode?
It allows you to temporarily use the device as a handheld thermal imager (with adapted operation and digital zoom). Practical if you want to observe briefly without reconfiguring (manufacturer's specification).
How does RAV work and what are its benefits?
RAV automatically records and saves a sequence before and after recoil. This aids in post-processing and can facilitate analysis (manufacturer's specification).
Does the device fit my daytime optics?
Adapter/clamp dimensions and the M52×0.75 interface are important. Please check before purchasing whether your adapter is compatible and whether the mounting can be carried out professionally.
