The ThermTec WILD 650L is a thermal imaging camera focused on extended range and precise distance measurement. The 640×512 sensor with NETD ≤ 18 mK (manufacturer's specification) and the 50 mm F0.9 optics are particularly interesting if you need more detail "up front" in the field or on larger clearings. The integrated laser rangefinder (LRF) up to 1,000 m (manufacturer's specification) ensures reliable distance values, instead of estimating in the thermal image.

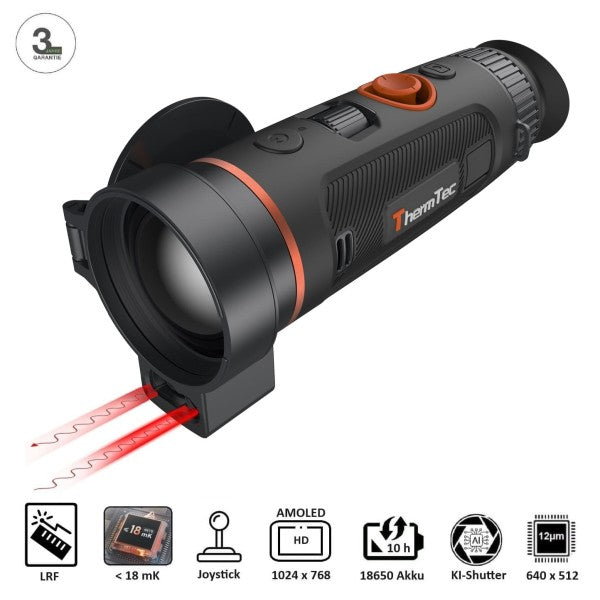

Key Features
- Sensor Resolution: 640 × 512, Pixel Pitch 12 µm (manufacturer's specification)

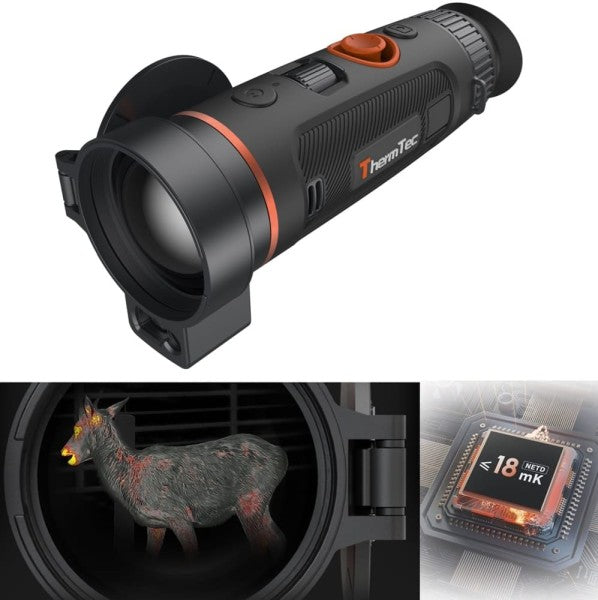

- System Performance: NETD < 18 mK (manufacturer's specification)
- Lens: 50 mm, Aperture F0.9 (manufacturer's specification)
- Field of View: 8.8° × 7.0° / 15.5 m field of view width at 100 m (manufacturer's specification)
- Display: AMOLED 1024 × 768 (manufacturer's specification)
- LRF: up to 1,000 m, Accuracy ± 1 m (manufacturer's specification)
- Optical Magnification: 2.8×; Digital Zoom: 1× to 4× stepless (manufacturer's specification)
- Battery: 18650 replaceable battery, Runtime up to 8 h per battery, 2 batteries included (manufacturer's specification)
- Storage: 64 GB, Photo/Video + Playback on device (manufacturer's specification)

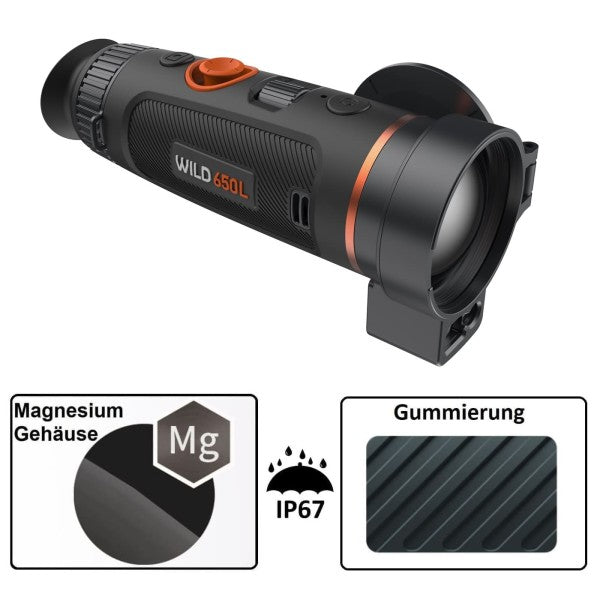

- Protection Class: IP67 (manufacturer's specification)
Our Assessment – from a Trainer & User Perspective
The 50mm optics are the key differentiator: you get a narrower field of view (15.5 m at 100 m), but more detail resolution at a distance. In practice, this means: for field hunting/clearings and situations where you want to "read into" things further, the WILD 650L excels. In dense forest, a wider field of view might be more comfortable – here, the choice is always a compromise between overview and range.
Practical Added Value: The field of view width provides a quick orientation for your application: 15.5 m at 100 m means you see less "width" when scanning than with shorter lenses – so you need to pan more cleanly, but you get more detail at a distance. The LRF reduces a typical thermal imaging pitfall: distances often appear closer than they are. A real measurement brings peace of mind – especially when you have multiple targets in sight.
Typical errors include too much digital zoom (makes the image coarser) and lack of focus: thermal imaging does not forgive this. Those who consistently focus and work with moderate zoom get the best mix of detail and image stability. The setup is oversized if you primarily work at short distances and a wider field of view would be more important for you.
Features & Operation
-

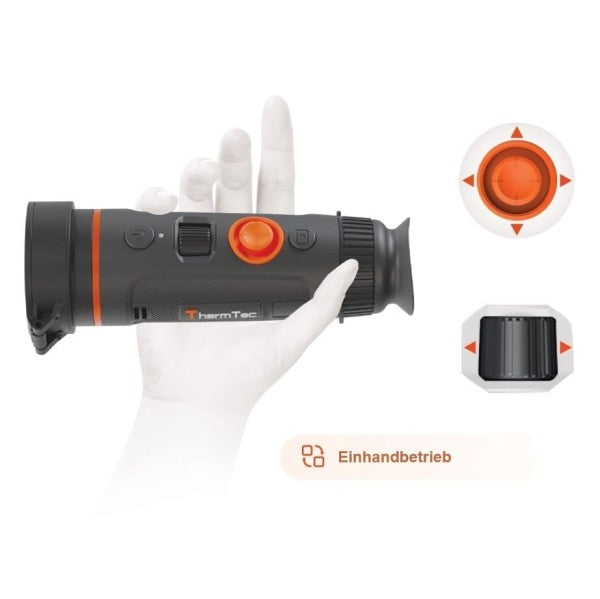

One-Hand Operation: Joystick/rocker + top-mounted focus wheel (manufacturer's specification)
-
Image Adjustment: Sharpness, noise reduction, brightness and contrast adjustable in steps (manufacturer's specification)
-
Color Palettes: 6 palettes; unused palettes can be deactivated in the quick menu (manufacturer's specification)
-
PIP (Picture-in-Picture): helpful for detailed work without losing the overall image (manufacturer's specification)
-
Hotspot/App: Live image and files can be used via WLAN connection (manufacturer's specification)
Technical Data
- Manufacturer/Model: ThermTec WILD 650L
- Sensor: VOx, 640 × 512, 12 µm (manufacturer's specification)
- NETD: < 18 mK (manufacturer's specification)
- Frame Rate: 50 Hz (manufacturer's specification)
- Lens: 50 mm, F0.9 (manufacturer's specification)
- Field of View (°): 8.8 × 7.0 (manufacturer's specification)
- Field of View Width at 100 m: 15.5 m (manufacturer's specification)
- Display: AMOLED, 1024 × 768 (manufacturer's specification)
- Magnification: 2.8× optical; 1×–4× digital stepless (manufacturer's specification)
- LRF: up to 1,000 m; accuracy ± 1 m (manufacturer's specification)
- Storage: 64 GB (manufacturer's specification)
- Protection Class: IP67 (manufacturer's specification)
- Tripod Thread: 1/4" (manufacturer's specification)
- Weight: 540 g (manufacturer's specification)
- Dimensions (L×W×H): 190 × 76 × 85 mm (manufacturer's specification)
- Operating Temperature: -20 °C to +50 °C (manufacturer's specification)
- Battery: Li-ion 18650; runtime up to 8 h per battery (manufacturer's specification)
- External Power Supply: USB 5 V (manufacturer's specification)
Scope of Delivery
- 1× ThermTec WILD 650L thermal imaging device
- 2× 18650 batteries
- 1× charger
- 1× USB-C cable
- 1× cleaning cloth
- 1× hand strap
- 1× neck strap
- 1× storage bag
- 1× German user manual
Note: All range and performance specifications (e.g., LRF up to 1,000 m, NETD < 18 mK, detection/recognition distances) are manufacturer's specifications and may vary depending on weather, humidity, temperature contrast, and target size. Please practice operation (focus, palettes, image parameters) in a quiet environment before use.
FAQ
What is the practical difference to the 35mm version?
The 50mm optics offer a narrower field of view (15.5 m at 100 m), but provide more detail at a distance. Ideal if range/addressing at a distance is paramount.
What does NETD < 18 mK mean in practice?
A low NETD value indicates high thermal sensitivity. This helps to make subtle differences more visible in fog, rain, or low contrast (manufacturer's specification).
Why is the LRF so important?
Thermal imaging can be deceptive regarding distances. The integrated LRF provides a reliable measurement and reduces misjudgments.
How useful is digital zoom?
Digital zoom magnifies the image, but not the sensor resolution. For best results, zoom moderately and focus cleanly.
What is the realistic runtime of the device?
ThermTec states up to 8 hours per 18650 battery (manufacturer's specification). Temperature, display brightness, and WLAN/LRF usage affect runtime. Two batteries are included.
