Vector Optics MAV-P05 Mount for Aimpoint Micro Footprint, 21mm Picatinny, h=12.8mm – practical classification
An optic is only as good as its interface.
The Vector Optics MAV-P05 mount for Aimpoint Micro Footprint, 21mm Picatinny, h=12.8mm is a mounting or adapter part for Vector Optics setups where mounting height, footprint and rail must fit together perfectly.
This is precisely where most errors occur in practice: wrong footprint, wrong height, wrong rail – and ultimately, the aim or point of impact is incorrect.
Why this product?
✔ Check interface carefully according to SKU, footprint and rail
✔ Observe Picatinny/Weaver, 11 mm Dovetail or specific adapter logic
✔ Mounting height determines head position and sight picture
✔ Always check fit and point of impact after mounting
Key features
- Check interface carefully according to SKU, footprint and rail
- Observe Picatinny/Weaver, 11 mm Dovetail or specific adapter logic
- Mounting height determines head position and sight picture
- Always check fit and point of impact after mounting
- Useful for red dot, rifle scope, riser or adapter setups
- Not a universal part for every system – compatibility is mandatory
Our assessment
Our assessment: This product doesn't solve an abstract accessory problem, but a concrete setup problem. If the interface is correct, your system will be faster, cleaner, and more repeatable. If it's not, you'll end up buying twice.
Instructor's tip: read the interface first, then buy.
Check three things: What rail does your weapon have? What footprint does your sight have? What mounting height do you need for your shooting position? Only when these three points match is the mount useful.
Who is it suitable for?
Suitable for: Suitable for sport shooters and hunters who want to set up red dots, optics or accessories cleanly.
Not suitable for: Not suitable if footprint, mounting height or rail interface do not clearly match the existing setup.
Features & Operation
- Do not confuse footprints such as TEK, MOJ, MGT, VOD or RUM
- 11 mm Dovetail is not Picatinny
- Low mount for flat systems, high/riser mount for AR-like positions
- Tighten screws evenly and check after the first shots

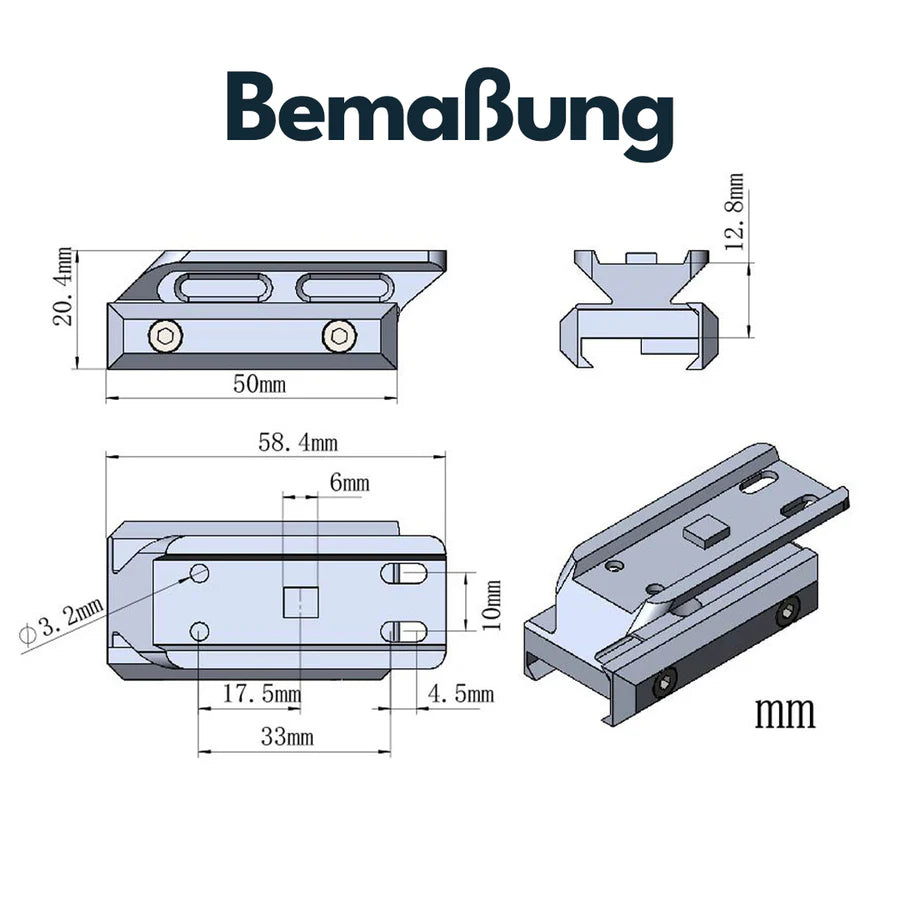

Technical data – explained simply
- Most important features
-
Type: Mount for micro red dots
-
Footprint: Aimpoint Micro Footprint (manufacturer's specification)
-
Rail: 21 mm Picatinny
-
Saddle height: 12.8 mm
-
Note: Material, dimensions and weight were not specified
- Our assessment – from an instructor's & user's perspective
- Lower mounts are strong if you prefer a slim setup and want the optic to sit as "close" to the platform as possible. This can feel clean
- and steady, but requires that your head position in the shooting stance truly fits. If you often have to search for the point, it is often due
- to an unfavorable combination of height and stance – not the red dot itself.
-
Practical added value: 12.8 mm clearly indicates "compact". This can be exactly right for some setups, but for others it can lead to
-
a permanently crouched head position. The most important check is therefore the Aimpoint Micro Footprint: "Micro" describes the mechanical
-
Practical benefit: Interface, mounting height and footprint must match the sight and weapon – otherwise the aim and sight picture will not be correct

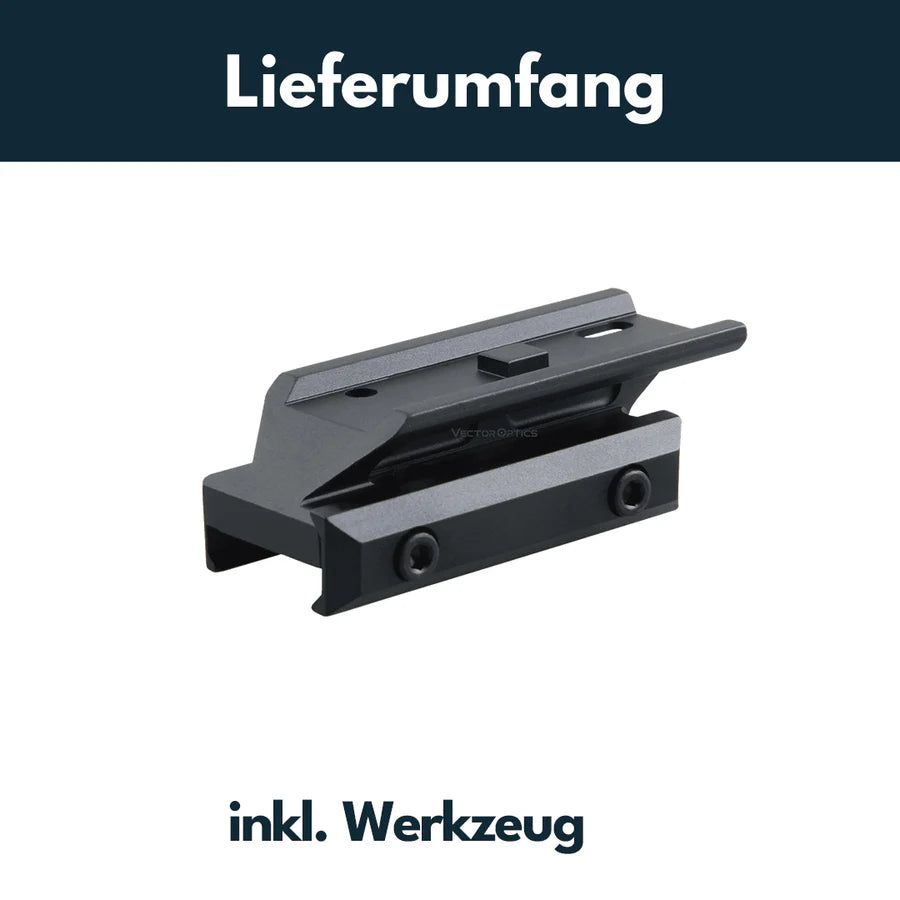

Scope of delivery
Note:
Always check compatibility, mounting, firm fit and function before use. For optical or point-of-impact relevant parts, shoot a control series after each mounting. Vector Optics is a strong budget to mid-range solution for civilian applications – not to be classified as uncompromising government/duty equipment.
FAQ
What is this mount used for?
It creates the mechanical interface between weapon, rail, red dot or accessories. Footprint, mounting height and mounting interface are crucial.
What is the difference between Picatinny, Weaver and 11 mm Dovetail?
Picatinny/Weaver are 21 mm rails for many sport and hunting setups. 11 mm Dovetail is often used with air guns, small caliber systems and certain hunting/sporting weapons.
Why is mounting height important?
The mounting height determines your head position and whether you quickly get a clear sight picture. Too high or too low costs speed and comfort.
Do I have to shoot a control group after mounting?
Yes. Any change to the mount or optics should be confirmed with a point of impact check.
Is the mount universal?
No. Footprint, rail and device must match. Always check SKU, interface and compatibility before purchase.
Especially with Vector Optics, the correct classification determines the benefit: do not choose based on the data sheet alone, but on use, mounting, target distance and real application.
